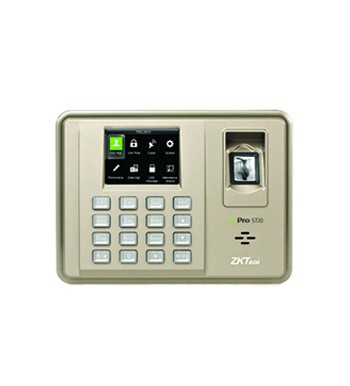

BioPro ST20
  • Identify wet, dry, and rough fingers
  • 3D Neuron Model Fingerprint Algorithm
  • Trendy UI design with user-friendly experience

With innovative fingerprint verification algorithm and latest SilkID Fingerprint Reader, SilkID is able to identify wet, dry, and rough fingers, and operate under strong light source. One of the remarkable feature of SilkID sensor is it can detect fake fingerprint. Infrared sensation technology enables accurate sensing fingerprint to be activated to save power.

New hardware platform, human-computer interface, and trendy UI design provide new yet simple and friendly experience.

  • Global-innovative 3D Neuron Model Fingerprint Algorithm.
  • Infrared auto fingerprint sensation and activation to save power.
  • Anti-glare technique and side light source to minimize interference to the verification process to achieve ultimate precision.
Fingerprint Capacity 3, 000
ID Card Capacity 10, 000 (Optional)
Record Capacity 100, 000
Display 2.8-inch TFT Screen

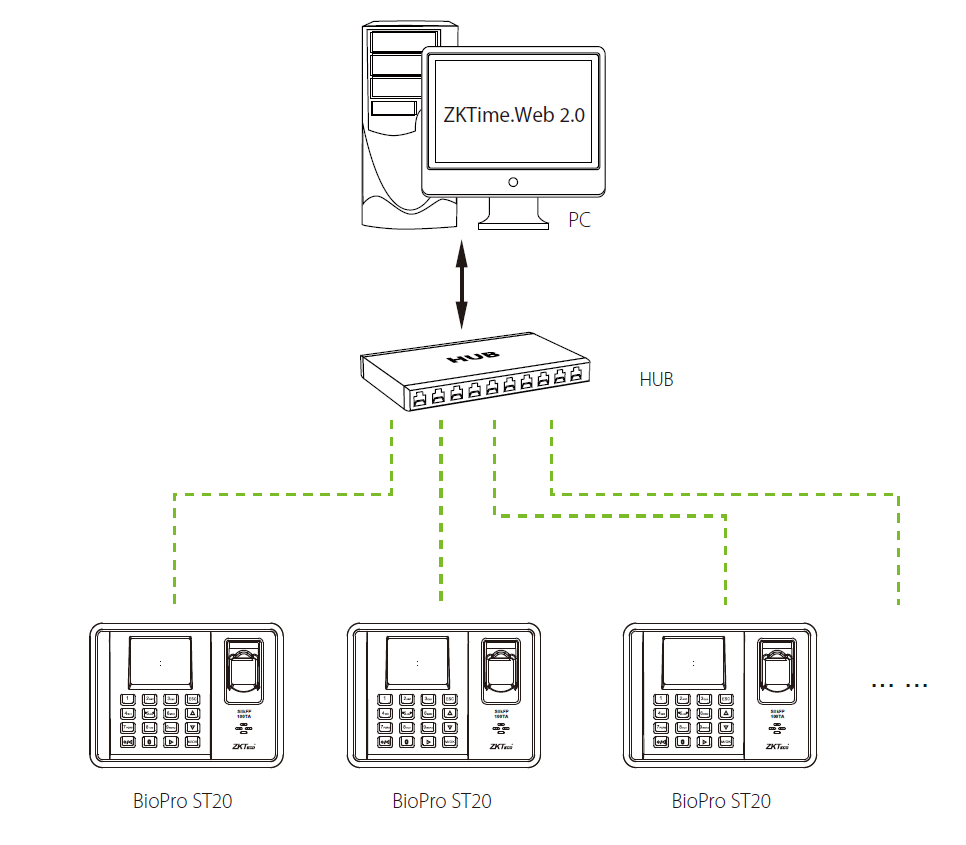

Communication RS232/485, TCP/IP, USB (Host & Client)
Standard Functions Webserver, Work Code, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 Input, 9 digit user ID, Photo ID, ADMS
Optional Functions ID/Mifare, Wi-Fi
Power Supply 5V DC 0.8A
Operating Temperature 0°C - 45°C
Operating Humidity 20% - 80%
Dimension 192.0 x 140.0 x 42.5mm
Package Weight 1.05kg
';

Back Plate

USB cable

Power Adapter

RJ45 to RS485 converter cable

Screws

BioPro ST20

0.39 Mb Data Sheet
2017-04-16
Download
