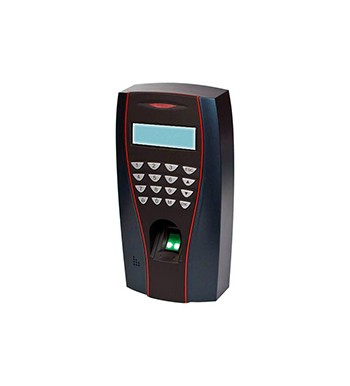

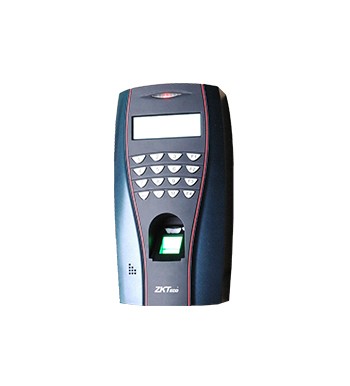

F9
  • Reliable, durable & highly accurate ZK optical sensor
  • Less than 1 second user recognition
  • Wiegand Input/Output

The F9 is a terminal presence and access control for actuating a relay through a micro-controller via Wiegand. The signing is performed with fingerprint and optionally RFID (proximity card). Your relay allows different functions such as opening door, around integration, etc. Communication is done directly with the PC via the Ethernet port but can function in "Stand-alone" mode.

  • Stores 3,000 templates and 100,000 transactions
  • Reads Fingerprint and/or Pin’s and/or RFID card
  • Supports 50 time zones, 5 groups and 10 unlock combinations
  • Integrated 125kHz RFID proximity reader
  • Built-in Serial and Ethernet ports
  • Built-in Wiegand input/output ports for connection to third party control panels
  • Built-in USB port allows for manual data transfer
  • Audio - Visual indications for acceptance and rejection of valid/ invalid fingers
  • Tamper switch
Fingerprint Capacity 3,000 templates
Transaction Capacity 100,000 transactions
Sensor

ZK Optical Sensor
Algorithm Version ZK Finger v10.0
Built-in Card Reader 125kHz RFID proximity reader
Communication RS232/485, TCP/IP,USB-host
Wiegand Ports

Input and Output any bits

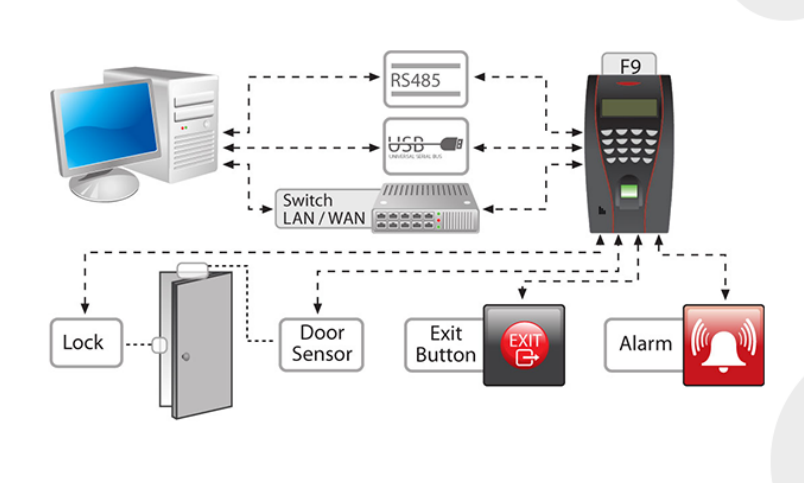

Access Control interfaces 3rd party electric lock, door sensor, exit button, open door alarm
Access Control functions         50 time zones, 5 access control groups, 10 unlock combinations
Power Supply

12V DC 3A
Operating Temperature

0 °C - 45 °C
Operating Humidity 20%-80%
Dimension 99.6X194X43 mm
';

Cables

Diode (FR107)

Screw driver

Installation Guide

Screws

F9

8.86 Mb Data Sheet
2015-09-08
Download
