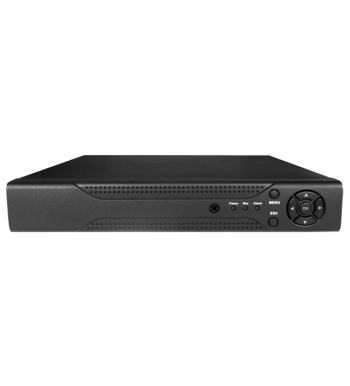

GT-NR401-POE
  • Support POE function
  • 4-ch HD video input
  • 1 SATA max to 3 TB
  • H.264 compression
  • With VGA and HDMI output
  • Support controlling PTZ via mouse
  • Support mobile view (IOS, Android)
  • Support Multi-language
  • Support IE web server, client software.
  • Support DDNS DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL etc.

Video/Audio



Standard

Video: PAL; NTSC Audio: G.711A

Video Compression

H.264(High Pro_le)

Video Display

1/4 split display

Video Input

1080P:4-ch

Video Output

1-ch BNC, 1-ch VGA, 1-ch HDMI

Audio Output

1-ch RCA

Backup/Playback



Backup

Network backup, USB mobile hard disk

Local Playback

960P:1-ch

Playback Resolution

960P/720P/960H/D1/HD1/CIF/QCIF

Hard Disk Driver



Storage

1 SATA (Max 3TB)

External Interface



Network Interface

5 RJ45 10M/100M POE adaptive Ethernet Interface

USB Interface

2 USB ports

Serial Interface

1 RS-485 half-duplex interface

General



Working Conditions

0℃-＋55℃; 10%－90% RH

Power Supply

12V/3A; 48V/1.5A

Dimension(color box)

345mm*95mm*275mm

Net/Gross Weight

1kg/1.88kg

GT-NR401-POE

0.18 Mb Data Sheet
2015-09-01
Download
