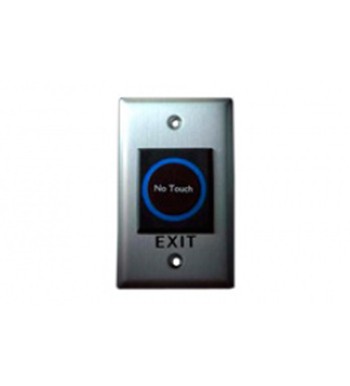

K1-1/K1-2
  • Door release buttons
  • No touch / Touch free Exit Sensor (Diffused Detection)
  • Optical / Infrared Technology
  • IP-55 Ingress Protection / SUS 304 Stainless steel Plate
  • User friendly (Healthy protection)
  • Free from contagious diseases spread
  • Detection range: 0.1 ~ 10 cm
  • Application: Gate/Door/Exit/Automation control
  • High capacity of relay dry contact (3A/AC120V,DC30V)
  • Normally open/Normally close/Common relay output
  • Twin led indicators for sensor standby or approached
  • Sensor Standby: BLUE LED ON
  • Visitors whom approached to the sensor in 10 cm : RED LED ON
  • K1-1 (One relay) / K1-2 (Two relays)

Contact Rating

3A/AC120V, DC30V

Input Volt.

DC 12V

Management

Simple and clear for operation.

Operation temperature range

20ºC 55ºC

Life

100.000 Times

Mounting

Durable stainless steel plate

Dimension

115x70x29(mm)

Weight

85g

Exit Button

0.35 Mb Data Sheet
2015-11-04
Download
