- 264 Compression
- Real time record and playback
- Mobile view (Iphone, Android)
- 0 Interface
- Multi-language supported
- UPNP ,Free DDNS (Build-In Domain)and P2P

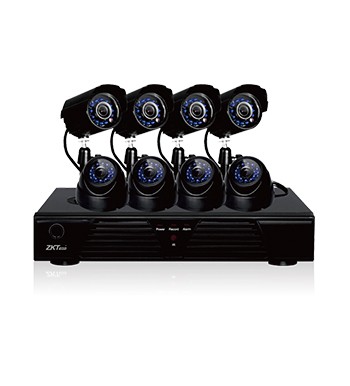

8CH bullet camera & DVR kit; 8CH dome camera & DVR kit; Super video quality, HD up to 720P Dual H.361 streams Elegant and compact design Built-in POE and WIFI(Optional) On board storage.
|
DVD Parameter |
|
|
Mode |
ZK-DV0801K |
|
Main Processor |
Industrial embedded micro-controller |
|
O/S |
Embedded Linux System |
|
System Source |
Multi-Channels recording, Playback, operation and USB backup. |
|
O/S Interface |
16 Bit real-color manual, support mouse operation |
|
Display Frame |
1/4/8/9 Split display |
|
Video System |
PAL (625TVL); NTSC(525TVL) |
|
Preview Resolution |
PAL，D1（704×576),CIF（352×288）；NTSC，D1（704×480）,CIF（352×240） |
|
Play back Resolution |
PAL，CIF（352×288）；NTSC，CIF（352×240）PAL，D1（704×576)；NTSC，D1（704×480） |
|
Code Capacity |
2D1+6CIF@25fps Real-Time |
|
Motion Detection |
396 (22*18) detection zone in each display frame settable |
|
Audio Compression |
G711A |
|
Intercom |
Support |
|
Recording Mode |
Manual , alarm , motion detection , schedule recording |
|
Local Playback |
Single CH , Multi CH (Support 8 CH CIF play back at real-time) |
|
Search Mode |
Time, calendar, event, channel search |
|
Storage Regulation |
Audio : 28.8MBit/H & Video:25-450MBit/H |
|
Record Storage |
Hard disk and network |
|
Backup Mode |
Network , USB disk , USB CD |
|
Video Input |
8 CH BNC，1.0Vp-p,75Ω |
|
Video Output |
1CH HDMI, 1 CH BNC，1.0Vp-p,75Ω，1CH VGA Output |
|
Audio Input |
4 CH RCA，200-2800mV,30KΩ |
|
Audio Output |
1 CH RCA，200-3000mV,5KΩ |
|
Alarm Input |
N/A |
|
Alarm Output |
N/A |
|
Network Interface |
RJ45 10M/100M |
|
PTZ Control |
yes |
|
USB Interface |
2 USB Interface |
|
SATA |
1 SATA (max to 3T) |
|
Power Supply |
12V/3A |
|
Consumption |
<10W（Hard disk excluded) |
|
Working Temperature |
0°C-+55°C |
|
Working Humidity |
10%-90% |
|
Atmospheric Pressure |
86kpa-106kpa |
|
Dimension |
30.8*33*7.5mm |
|
Weight |
1.3kg (Hard disk excluded) |
|
Camera Parameter |
|
|
Model |
ZK-SIR291K / ZK-SMD291K |
|
Image Sensor |
1/4”CMOS |
|
Pixels |
PAL:752Hx582V NTSC:768Hx494V |
|
Horizontal Resolution |
600TVL |
|
Min Illumination |
0.1Lux/F1.2 |
|
System |
PAL/NTSC |
|
IR LED |
18 built-in _5 IR lamp |
|
Day / Night Mode |
Automatically IR-cut filter |
|
Lens |
3.6mm (6mm optional) |
|
SNR |
≥48db （AGC OFF） |
|
Shutter Speed |
1/50（1/60）～1/120000 seconds |
|
Gamma Correction |
0.45 |
|
White Balance |
Auto |
|
Backlight Compensation |
Auto |
|
Sync Mode |
Internal synchronization |
|
Video Out Rate |
1.0Vp-p at 75Ω |
|
Power |
DC12V |
|
Working Temperature |
-10℃~50℃ |
|
Storage Temperature |
-20℃~60℃ |
|
Dimensions(mm) |
147（L）×69(H)mm/95(D) ×77(H)mm |
|
Gross Weight |
430g/150g |
