L7000
  • 500 Template Storage
  • Low power usage
  • American standard single latch
  • Fingerprint/Password/Key
  • OLED display screen
  • USB flash disk is optional

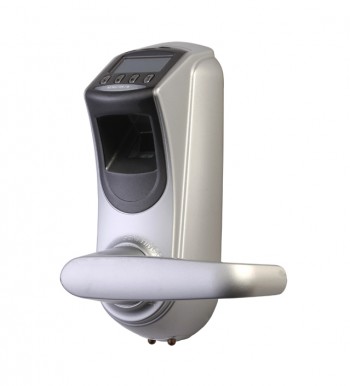

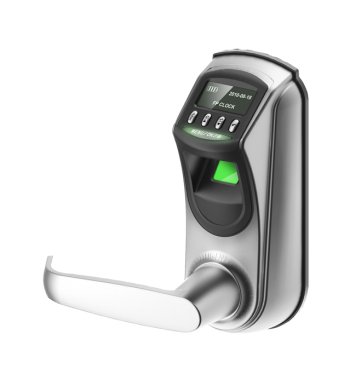

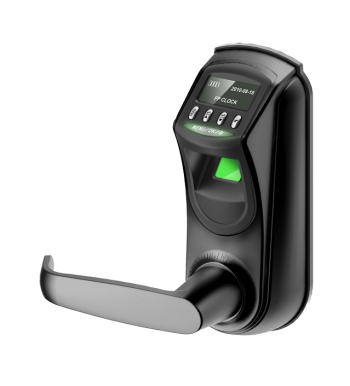

L7000 is a smart lock with embedded fingerprint recognition technology. It is DIY design, which can be installed on the door quickly. You even can do it by yourself.

  • With the new generation fingerprint recognition algorithm
  • American standard single latch for fast installation and easy replacement
  • Handle, latch and strike is reversible design for all door open direction
  • Idle handle design to prevent from forcible entry
  • OLED display screen with visual menu
  • Three independent unlocking - fingerprint, password, mechanical key
  • Smart alarm for low battery & illegal operation
  • Data upload/download via USB port
  • Normal Open mode
  • Support query door open logs
  • External terminals to draw back-up power from a 9V battery
  • Backset is adjustable (60mm or 70mm)
  • Access Timetable Management (optional)

Material

Zinc Alloy

Fingerprint Capacity

500

Password Capacity

100

Log Capacity

30,000

Communication

USB flash disk (optional)

Operating Temperature

0 °C - 45 °C

Power Supply

4 × AA Alkaline Battery

Backup Unlock

Mechanical Key & 9V Battery

Door Thickness

35-55 mm (standard)

55-75 mm (optional)

Gasket

Indoor Unit

Installation Guide

Mechanical key

Mounting plate

Outdoor unit

Single latch

Spindles & screws

Strike box

Strike plate

L7000 User Manual

3.48 Mb User Manual
2015-09-08

L7000

0.53 Mb Data Sheet
2015-09-08

L7000 Installation Guide

2.47 Mb Installation Guide
2015-11-04
