L9000
  • Anti-theft mortise with one latch bolt and two deadbolt
  • Fingerprint/Password/Key
  • With sliding metal cover protection
  • Remote open door is optional

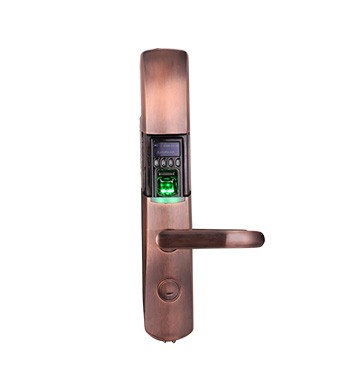

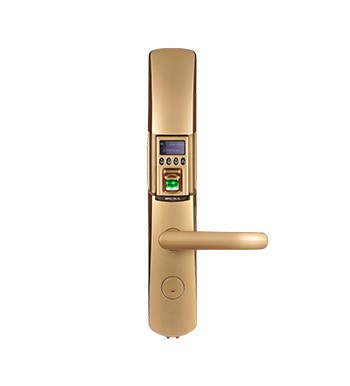

L9000 is a smart lock with embedded fingerprint recognition technology. It uses anti-theft mortise with one latch and two deadbolt, which you can lock the deadbolt from both inside and outside for more security. It also has three unlocking ways - fingerprint, password, mechanical key.

  • With the new generation fingerprint recognition algorithm
  • Smart anti-theft mortise with one latch and a two deadbolt
  • Idle handle design to prevent from forcible entry
  • OLED display screen with visual menu
  • Sliding metal cover to protect OLED screen and fingerprint sensor
  • Three independent unlocking - fingerprint, password, mechanical key
  • Turn handle upward to lock deadbolt
  • Smart alarm for low battery & illegal operation
  • Data upload/download via USB port
  • Support passage mode - Normal Open
  • Support query door open logs
  • External terminals to draw back-up power from a 9V battery
  • Backset is 60mm
  • Access Timetable Management (optional)
  • Remote open door (optional)

Material

Zinc Alloy

Fingerprint Capacity

500

Password Capacity

100

Log Capacity

30000

Communication

USB flash disk

Options

Remote Control Key

Operating Temperature

0°C - 45°C

Power Supply

4×AA Alkaline Battery

Backup Unlock

9V Battery & Mechanical Key

Door Thickness

60-75 mm (standard)



45-60 mm (optional)



75-90 mm (optional)

Cylinder

Gasket

Indoor Unit

Installation Guide

Mounting plate

Outdoor unit

Single latch

L9000

0.52 Mb Data Sheet
2015-11-04

L9000 User Manual

4.23 Mb User Manual
2015-11-04

L9000 Installation Guide

2.03 Mb Installation Guide
2015-11-04
