LH5000
  • Robust mechanical structure
  • No wiring required
  • American standard mortise with 5 lathes
  • Advanced 13.56mhz Mifare-1 card technology
  • Professional hotel lock management software

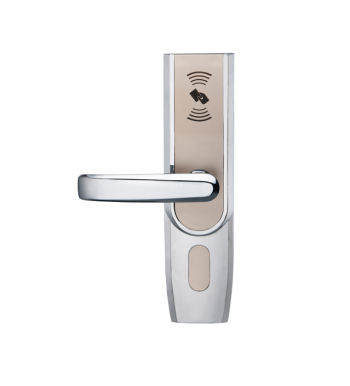

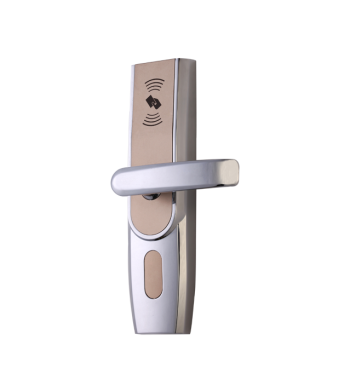

LH5000 is one RFID lock with advanced 13.56 MHZ Mifare-1 card technology, which has the ability of reading and writing to the guest and staff cards. The included lock management software offer you an easy “one-click” installation, what you need to do is to click next.

  • With advanced 13.56mhz MIFARE-1 card technology
  • American standard mortise with 5 latches
  • Zinc Alloy housing with bright chrome finish (only outdoor unit)
  • With professional hotel lock management software - single click install
  • Audit trail records the latest 224 lock transactions
  • With warning beeps in low battery power
  • Backset is 70 mm

Software

ZKBiolock Hotel Lock System

Card Type

ISO14443 (RFID) Type-A, S70 4KB/ S50 1KB

Power Supply

4 x AA Alkaline battery

Operating Temperature

0 °C- 45°C

Door Thickness

35-55 mm

Allen key

Cylinder

Indoor Unit

Installation Guide

Mechanical key

Mortise

Mounting plate

Outdoor unit

Screws

Spindles

Strike box

Strike plate

LH5000 Installation Guide

1.45 Mb Installation Guide
2015-09-08

LH5000

0.43 Mb Data Sheet
2015-09-08
