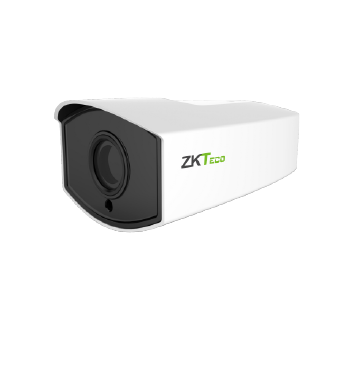

PT-BA294K2/294K4 (4MP)
- Support ONVIF
- Support ID, IP, DDNS server
- Support Web Access
- Mobile view (IOS, Android)
| Technical Specifications | ||
| Model | PT-BA294K2 | PT-BA294K4 |
| Sensor | OV4689 cmos | |
| Light-sensing surface area | 1/3-inch | |
| Resolution | 4.0MP | |
| De nition | 2592(H)*1520(V) | |
| Video Frame | 50Hz:4M(2592*1520)@15fps, 3M(2048*1536)@25fps 60Hz:4M(2592*1520)@15fps, 3M(2048*1536)@30fps |
|
| Video Compression | H.265/H.264 | |
| Min. illumination | Color:0.01Lux@ (F1.2,AGC ON), 0 LUX with IR B&W:0.001Lux@ (F1.2,AGC ON), 0 LUX with IR |
|
| Lens | 4mm fixed lens (6/8/12mm optional) | |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP (HTTPS, SIP, 802.1x, IPv6optional) |
|
| Ethernet | 1*RJ45 10M/100M | |
| Shutter | 1/50(1/60)s to 1/10,000s | |
| IR Distance | 2*Array LED: 20m | 4*Array LED: 50m |
| Power Supply | DC 12V /1.5A | |
| Working Environment | -10 °C- 60 °C, Less than 90%RH | |
| Gross/Net Weight | 0.64KG/0.5KG | |
| Dimension(color box) | 230mm*130mm*117mm | |
