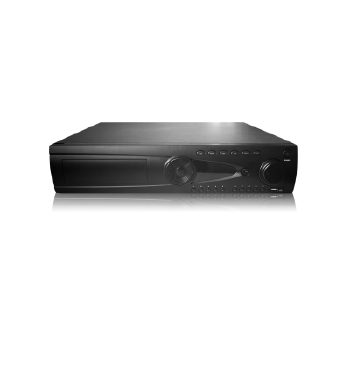

PT-NR5832
- 32-ch HD video input
- 8 SATAs max to 48 TB
- H.265/H.264 compression
- Support HDMI 4K output
- 32-ch HD video input
- 8 SATAs max to 48 TB
- H.265/H.264 compression
- Support HDMI 4K output
- Support mobile view (IOS, Android)
- Support multiple web server(IE, Chrome, Firefox, Safari);
- Support Multi-language
- Support DHCP, FTP, DNS, DDNS, NTP, UPNP, IP searching Email, 3G, WIFI, Alarm center etc.
| Technical Specifications | ||
| Video/Audio | ||
| Video | PAL/NTSC | |
| Standard | Audio: G.711A | |
| Video Compression | H.265/H.264 | |
| Monitor Quality | MAX 4K | |
| Video Input | 5M: 24-ch 3M: 32-ch 1080P: 16-ch | |
| Video Output | 1ch HDMI 1ch VGA | |
| Backup/Playback | ||
| Backup | Network backup, USB hard disk, USB record, SATA record | |
| Local Playback | 5M: 4-ch 4M: 9-ch 1080P: 16-ch | |
| Record M | Manual>Alarm>Dynamic detection>Timing | |
| Hard Disk Driver | ||
| Storage | 8 SATAs (Max 48 TB) | |
| Alarm I/O | 16/4 | |
| Audio I/O | 1/1 | |
| Onvif | support | |
| Network Interface | 1 RJ45 10M/100M/1000M adaptive ethernet interface | |
| USB Interface | 2 USB2.0 1 USB3.0 ports | |
| PTZ Control | Control PTZ device by network | |
| General | ||
| Working Conditions | 0℃-＋55℃; 10%－90% RH | |
| Power Supply | ATX | |
| Dimension(color box) | 443mm*427.5mm*92mm | |
| Weight | Around 6 KG | |
PT-NR5832
2.47 Mb
Data Sheet
2017-03-23
