SC105
  • 2.0 inch color display with graphical UI for easy operation
  • Up to 24 user-defined schedules that can be activated on a daily bell alert
  • Prompt audio acceptance or rejection signals for valid or invalid cards

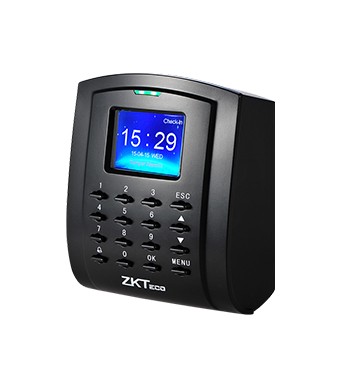

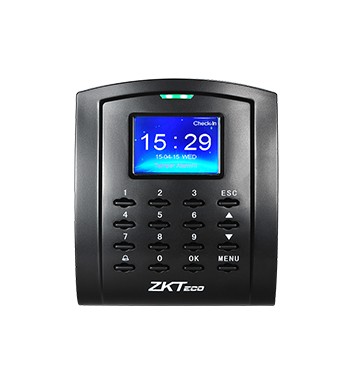

SC105 is a RFID Access Control Terminal which possesses a 2.0-inch color display with graphical UI, enabling simple and easy control. It has a built-in auxiliary input function which enhances the flexibility to be connected with wired detector or emergency switch.

  • 2.0-inch color display with graphical UI for easy operation
  • Up to 24 user-defined schedules that can be activated on a daily bell alert
  • Prompt audio acceptance or rejection signals for valid or invalid cards
  • TCP/IP or RS485 communication for various networking environments
  • Supports USB flash drive for offline data management
  • Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
  • Multi-verification methods to enhance security level
  • Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
  • Duress Alarm offers effective protection against duress by threats
  • Tamper Proof Switch and multiple alarm outputs
  • Multi-languages

ID card Capacity

30,000

Transaction Capacity

80,000

Communication

TCP/IP, RS485, USB-Host

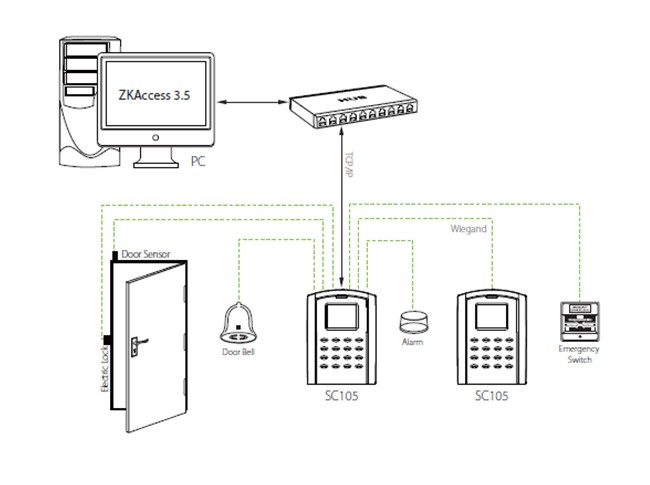

Access Control Interface for

3rd party electric lock, door sensor, exit button, alarm, doorbell

Auxiliary Interface

1ea for linkage function

Wiegand Signal

Output & Input、SRB

Standard Functions

Anti-passback

Optional Functions

Mifare、Print Function

Display

TFT LCD Color Screen

Power Supply

DC 12V

Operating Temperature

0°C ~ 45°C

Operating Humidity

20% ~ 80%

Dimension(L×W×H)

130mm×94mm×52mm

SDK

Standalone SDK

Software

ZKAccess3.5

';

Cables

Diode (FR107)

ID card

Quick Start Guide

RJ45 connector

Screw driver

Screws

SC105

0.43 Mb Data Sheet
2015-11-02

SC105 User Manual

3.89 Mb User Manual
2015-11-02

SC105 Quick Start Guide

0.91 Mb Quick Start Guide
2015-11-02
