• Touch Screen
  • RFID Time & Attendance Terminal device

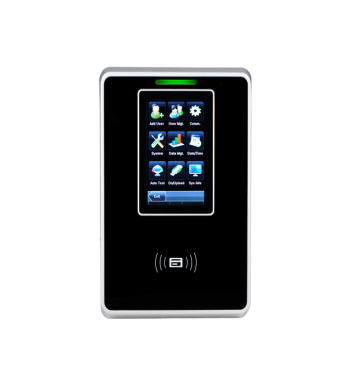

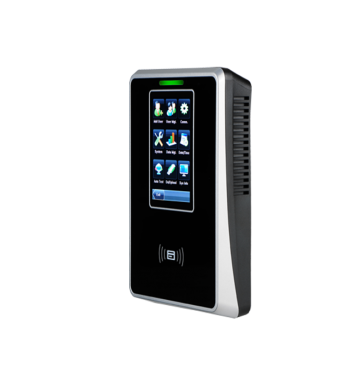

The SC700-T is an RFID time & attendance terminal with 3" TFT LCD. Its color display and touch screen make the menu operation extremely comfortable and easy.

Adopting ZK core board, its identification is very fast and reliable.

It can also control the door access and connect with 3rd party electric lock, door sensor, and exit button, etc. Slim and elegant design makes the SC700-T more applicable to different type of offices.

  • 3” TFT color display and touch Screen
  • Elegant ergonomic design
  • Easy operation
  • Time attendance and access control functions
  • Stores up to 30,000 cards and 100,000 records
  • Optional Mifare card module.
  • Access control interfaces for 3rd party electric lock, door sensor, exit button and alarm
  • Multi-language available


3-inch Touch Screen

ID Card Capacity


Log Capacity



TCP/IP, USB host

Standard Functions

ID Card, Automatic Status Switch, T9 Input, 9 Digit User ID, Multi-verification Method,3rd Party Electric Lock, Door Sensor, Exit Button, and Alarm, Self-Service Query, Work Code, DST, Scheduled-bell, SMS

Optional Function

Mifare Card, Wi-Fi

Power Supply

DC 12V 1.5A

Verification Speed

≤1 sec

Operating Temperature

0 °C-45 °C

Operating Humidity



104.7 × 160 × 36 mm (L × H × D)


USB cable

Electric wire intake box

Measuring tape

Power adapter

Screw driver


Touch pen


0.45 Mb Data Sheet

SC700-T User Manual

5.02 Mb User Manual
