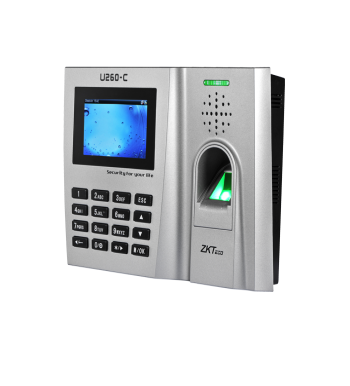

U260-C
  • New firmware
  • New stunning GUI, rock-solid stability
  • Faster matching speed

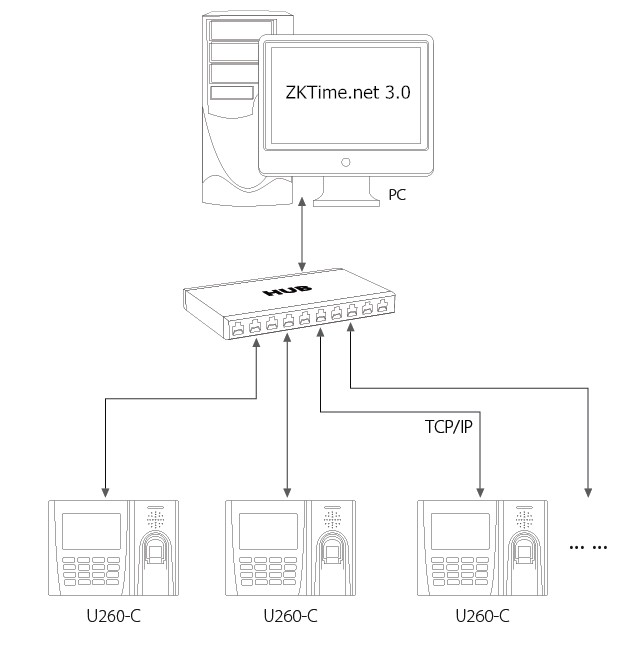

U260-C uses an advanced algorithm for reliable, precise, and excellent matching speed. Users can easily manage data by networking the device via RS232/485, TCP/IP, and USB client.

It supports data backup and retrieve to avoid the risk of accidental deletion.

.Color TFT screen with GUI Interface for ease of use

.ZK Optical Sensor

.1 touch a-second user recognition

.Stores 3,000 templates and 100,000 transactions

.Reads Fingerprint and/or PINs

.Optional integrated proximity or smart card reader

.Built-in Serial and Ethernet ports

.Built-in USB port allows for manual data transfer when network isn't available

.Multi Language Support

.Built in bell scheduling

.Real-time 1-touch data export 3rd party hosted & non-hosted applications

.Audio-Visual indications for acceptance and rejection of valid/invalid fingers

.SDK available for OEM customers and software developers

Fingerprint Capacity

3000

ID Card Capacity

10,000 (Optional)

Record Capacity

100,000

Display

3-inch Screen

Communication

RS232/485, TCP/IP,USB-client

Standard Functions

Work code, SMS, DST, Webserver, Scheduled-bell, Self-Service Query, Automatic Status Switch,T9 Input

Optional Functions

ID/Mifare/HID Cards, External Printer and Bell, ADMS, Photo ID, ADMS

Software

ZKTime. Net 3.0

Power Supply

DC 5V 0.8A

Verification Speed

≤ 1 Sec.

Operating Temp.

0 °C- 45 °C

Operating Humidity

20%-80%

Dimension

192.3 × 138.8 × 42.7mm (Length × Width × Thickness)

Gross Weight

1.10 kg

';

USB cable

Back Plate

Power adapter

RJ45 to RS485 2 pin cable

Screws
