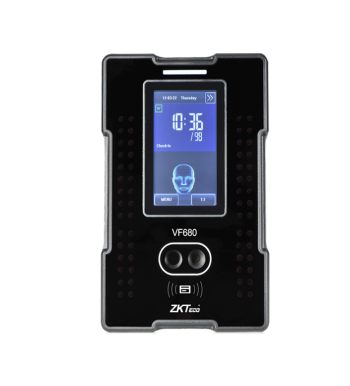

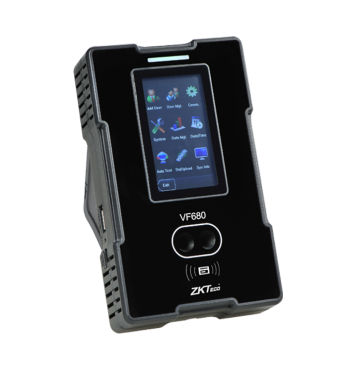

VF680
  • Wi-Fi, Ethernet communication
  • Professional ZKTeco face identification algorithm
  • 800 face capacity and 10,000 ID Card Capacity

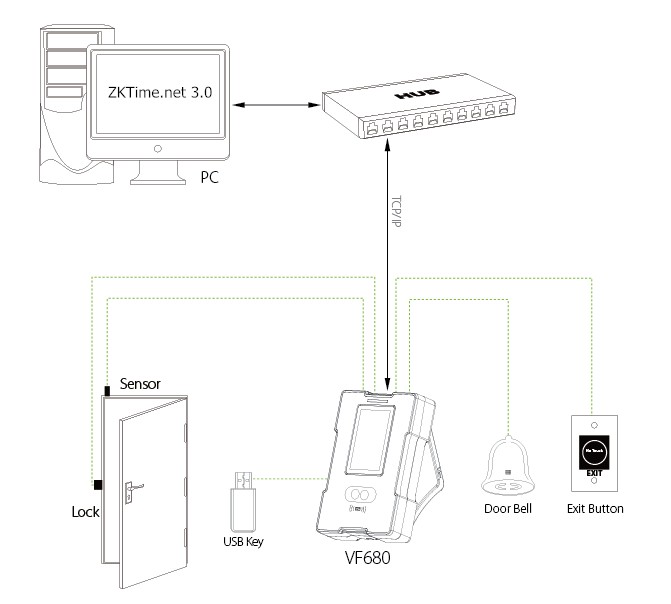

VF680 is a face identification time & attendance and access control terminal, which can connect with third party electric lock, door sensor, and exit button etc.

With the latest face identification algorithm and streamlined technology, it can hold 800 face templates without dividing into groups.

It ensures a smooth connection and data transfer with its different type of communication: Wi-Fi (optional), TCP/IP, and USB client. Amazing verification speed and intuitive operation process make it popular. Elaborately designed and finely processed, it matches your slap-up office perfectly.

  • Elegant ergonomic design; Easy installation.
  • Wi-Fi (Optional), TCP/IP, and USB and client communication.
  • Professional ZKTeco face identification algorithm.
  • 800 face capacity and 10,000 ID Card Capacity.
  • Optional Mifare card module.
  • Infra-red optical system enables user-identification in awide range of light environments.

Display

3-inch Touch Screen

Face Capacity

800(Standard)/1200(Optional)(1:N)

ID Card Capacity

10,000

Logs Capacity

100,000

Communication

TCP/IP, USB (host and client)

Standard Functions

ID Card,Automatic Status Switch, Self-Service Query, Work Code, T9 Input, 9 Digit User ID, DST, Scheduled-bell and SMS, 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm

Optional Function

Mifare Card, Wi-Fi

Power Supply

12V/1.5A

Verification Speed

≤1 sec

Operating Temperature

0-45 °C

Operating Humidity

20%-80%

Dimensions

104.7 × 160 × 36 mm (L × H × D)

';

USB cable

Back Plate

Cable connector

Electric wire intake box

Measuring tape

Mounting paper

Power adapter

Screw driver

Screws

Touch pen

VF680

0.48 Mb Data Sheet
2015-09-09

VF680 Quick Start Guide

0.84 Mb Quick Start Guide
2015-09-09
