BioPro SA10
  • Great user inactivity
  • Multi-languages
  • Data backup and retrieve

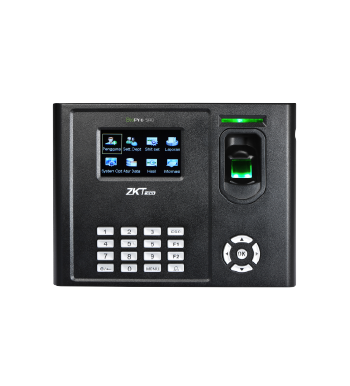

BioPro SA10 is a 3-inch Fingerprint Time Attendance & Access control Terminal which is equipped with fundamental features including Wi-Fi, GPRS, built-in battery and more keypads which brings you a simple but more efficient interaction and user experience. It is a good chooses if you want a device with varies function and economic. If you need an economic device with various functions, BioPro SA10 would be an optimal choice.

Remarkable User Experience

  • Intuitive and stunning UI designed with the most popular and internationalized elements
  • Interface operation adopts modularized hierarchical design. Simpler, better and more logical
  • Great user interactivity
  • User validity setting

Enhanced Features and Performance

  • Multi-languages
  • Data backup and retrieve
  • Advanced User ID consisted of letters and numbers
  • Chip encryption for firmware protection

Excellent Expandability

  • Easy to extend functions and customize customers’ requirements

Access Control Interface

  • For wiegand in and out, door lock connection, alarm and bell

Fingerprint Capacity

3,000

Card Capacity

10,000 (Optional)

Transaction Capacity

100,000

Display

3.0-inch TFT Screen

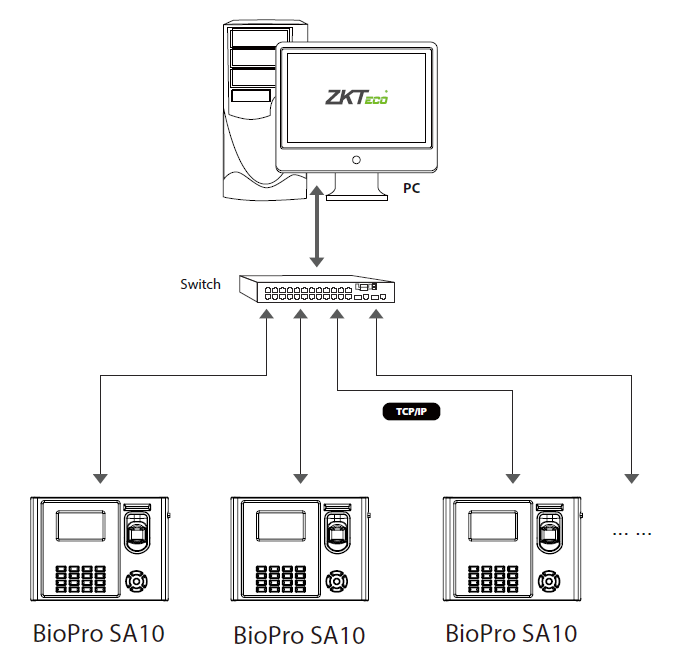

Communication

TCP/IP, USB Host & Client

Access Control Interface for

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, and Door Bell

Wiegand signal

Input & Output

Standard Functions

Webserver, Work code, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, Photo ID, ADMS

Optional Functions

ID/Mifare/HID, External Printer, Wi-Fi, GPRS

Power Supply

12V DC, 1.5A

Operating Temperature

0 ℃- 45 ℃

Operating Humidity

20%-80%

Dimension(W×H×D)

221.7*159.5*42.9mm (Length*Width*Thickness)

';

BioPro SA10

0.46 Mb Data Sheet
2017-04-16
