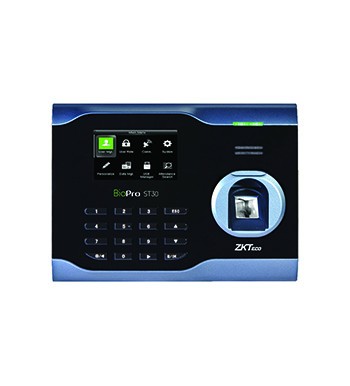

BioPro ST30
  • Identifies wet, dry, and rough fingerprints
  • Accurate identification of fingerprint

With the latest SilkID fingerprint reader and innovative fingerprint verification algorithm adopted, SilkID fast and precisely identifies wet, dry and rough fingers. One of the remarkable feature of SilkID sensor is it can detect fake fingerprint.

Infrared sensation technology enables accurate sensing of fingerprint to be activated to save power.

  • Latest SilkID fingerprint reader precisely identifies wet, dry and rough fingerprints.
  • Infrared auto fingerprint sensation and activation to save power.
  • Good operation under strong light source with anti-glare technique.
  • Fits with governmental facilities, factories, construction sites, financial bodies and institutional facilities.
Fingerprint Capacity 3, 000
ID Card Capacity 10, 000 (Optional)
Record Capacity 100, 000
Display 2.8-inch TFT Screen

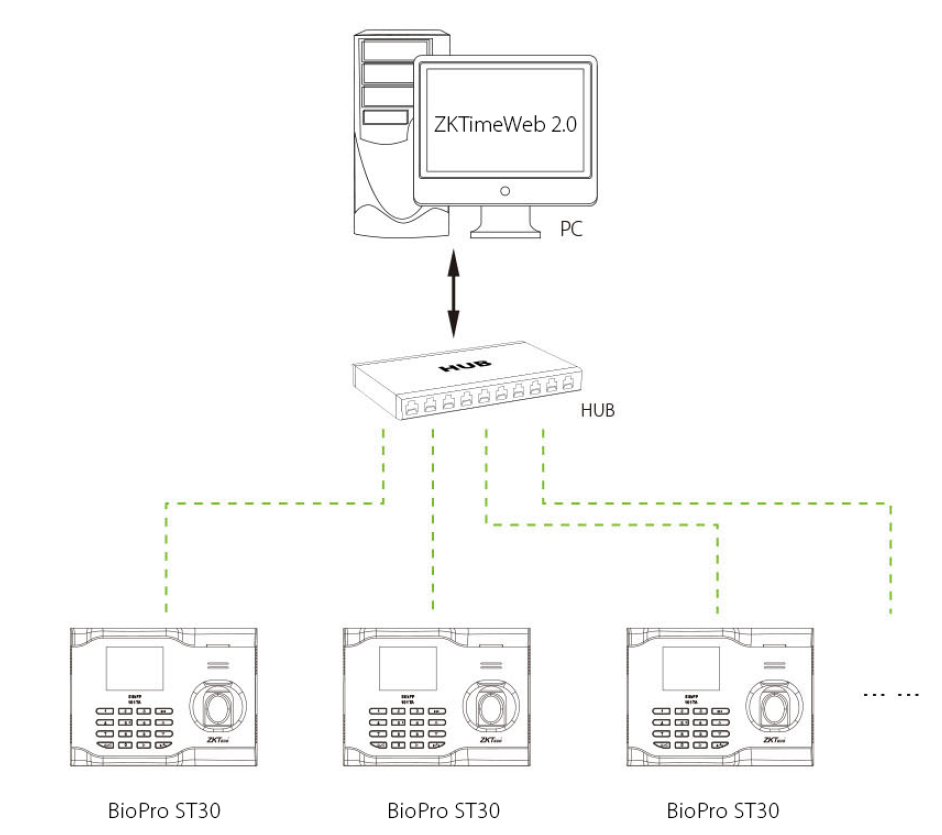

Communication RS232/485, TCP/IP, USB (Host & Client)
Standard Functions Webserver, Work Code, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 Input, 9 digit user ID, Photo ID, ADMS
Optional Functions ID/Mifare, Wi-Fi
Power Supply 5V DC 0.8A
Operating Temperature 0°C - 45°C
Operating Humidity 20% - 80%
Dimension 192.0 x 140.0 x 42.5mm
Package Weight 1.05kg
';

Back Plate

USB cable

Power adapter

RJ45 to RS485 converter cable

Screws

BioPro ST30

0.17 Mb Data Sheet
2017-04-16
Download
