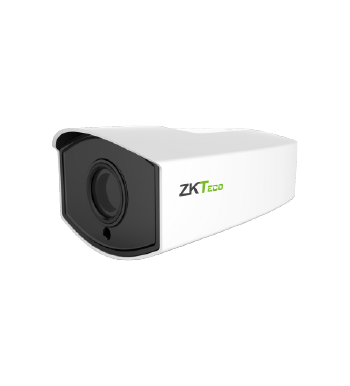

BT-BA10K2/13K2/13K4/20K4
- Support Onvif2.4, P2P function and mobile view through main stream NVR
- 3D DNR, 8*ROI Area, Stable Snapshot
- Motion Detection
| Technical Specifications | ||||
| Model | BT-BA10K2 | BT-BA13K2 | BT-BA13K4 | BT-BA20K4 |
| Sensor | Progressive scan CMOS sensor | |||
| Light-sensing surface area | 1/4-inch | 1/3-inch | 1/3-inch | 1/2.7-inch |
| Resolution | 1.0MP | 1.3MP | 1.3MP | 2.0MP |
| De nition | 1280(H)x720(V) | 1280(H)x960(V) | 1280(H)x960(V) | 1920(H)×1080(V) |
| Video Frame | 50Hz: 25fps 60Hz: 30fps; | |||
| Video Compression | H.264 | |||
| Min. illumination | Color: 0.05Lux@(F1.2), Black: 0.01Lux@(F1.2), 0 LUX with IR | |||
| Lens | >4mm@F1.8 (6/8/12mm optional) | |||
| Protocol | TCP/IP, DHCP, HTTP, HTTPS, NTP, DNS, RTP RTS | |||
| Working Environment | -10℃～+60℃，Less than 90%RH | |||
| Shutter | Auto | |||
| Infrared Resection | IR-CUT | |||
| IR Distance | 20m | 20m | 50m | 50m |
| Power Supply | DC12V±10% | |||
| Operating Temperature | -10℃～+50℃ | |||
| Net Weight | 0.64KG/0.5KG | |||
| Dimension(color box) | 230mm*130mm*117mm | |||
BT-BA10K2/13K2/13K4/20K4
0.32 Mb
Data Sheet
2017-03-22
