- 1-door, 2-door, 4-door models
- Built-In Advanced Access Control
- TCP/IP and RS-485 communication
- Built-in auxiliary input and output
ZKAccess Systems are built on flexible, open technology to provide management, real-time monitoring, and control of your access control system-all from a browser, with no additional software to install.
Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. C3 series' versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features.
The C3 series control panel can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.
- Multiple hardware protection measure
- There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
- Integration with Other Security Systems
- Supports different wiegand reader
- Input/Output Ports to Control Doors
- Variety of Communication Function
- Normal open after first punch card can be setup
- Real-time Monitoring of Door status
- Simple Access Control System Configuration
- Interlock function
- Multi-card operation
- Anti-Passback
- Duress Mode
- SDK available

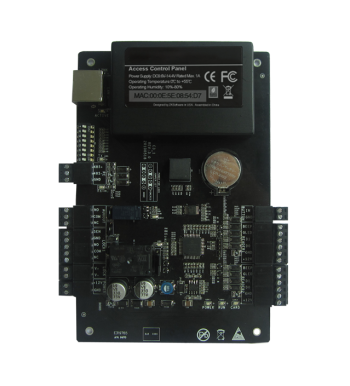

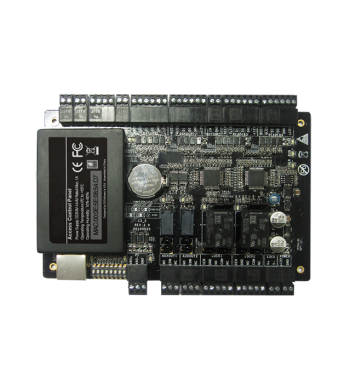

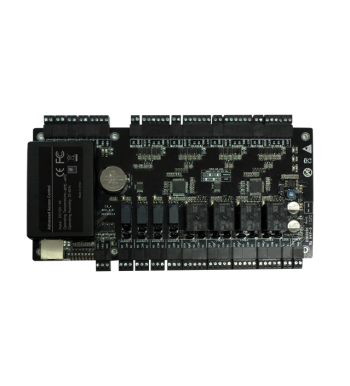

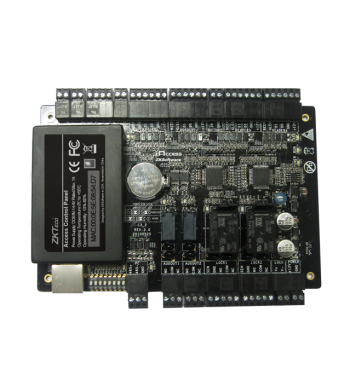

Number of Doors Controlled |
1 Door |
2 Door |
4 Door |
Number of Readers Supported |
2 |
4 |
4 |
Types of Readers Supported |
26-bit Wiegand, others upon request |
26-bit Wiegand, others upon request |
26-bit Wiegand, others upon request |
Number of Inputs |
2 (Exit Device and Door Status, AUX) |
6 (2 Exit Device, 2 Door Status, 2 AUX) |
12 (4 Exit Device, 4 Door Status, 4 AUX) |
Number of Outputs |
2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) |
4 (2-From C Relay for Lock and 2-Form C Relay for Aux Output) |
8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output) |
Number of Doors Controlled |
1 Door |
2 Door |
4 Door |
Number of Readers Supported |
2 |
4 |
4 |
Types of Readers Supported |
26-bit Wiegand, others upon request |
26-bit Wiegand, others upon request |
26-bit Wiegand, others upon request |
Number of Inputs |
2 (Exit Device and Door Status, AUX) |
6 (2 Exit Device, 2 Door Status, 2 AUX) |
12 (4 Exit Device, 4 Door Status, 4 AUX) |
Number of Outputs |
2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) |
4 (2-From C Relay for Lock and 2-Form C Relay for Aux Output) |
8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output) |
Card Holders Capacity |
30,000 |
30,000 |
30,000 |
Log Events Capacity |
100,000 |
100,000 |
100,000 |
Weight |
7.4lbs (3.35kg) |
7.5lbs (3.4kg) |
7.8lbs (3.55kg) |
Communication |
TCP/IP and RS-485 |
TCP/IP and RS-485 |
TCP/IP and RS-485 |
Enclosure |
Powder Coated Aluminium |
Powder Coated Aluminium |
Powder Coated Aluminium |
Mounting |
Wall Mount |
Wall Mount |
Wall Mount |
Recommended Power Supply |
12V DC, 1.5A |
12V DC, 1.5A |
12V DC, 1.5A |
Dimensions (Bundle Only) |
15in.×3.15in.×11in. |
15in.×3.15in.×11in. |
15in.×3.15in.×11in. |
Dimensions (Board Only) |
6.3in.×4.17in. |
6.3in.×4.17in. |
6.3in.×4.17in. |
';
Diode (FR107)
Installation Guide
Screw driver
