F6
  • Wiegand Output
  • Support SD Card
  • RS485 Communication

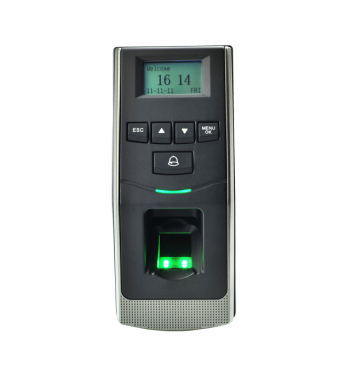

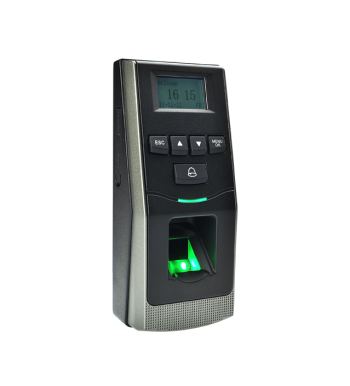

F6 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed.

The F6 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. All the operation can be done on the device. RS485 is available that the device can be used in network. SD card function is used for data transmission when network is not available.

  • Slim and elegant design
  • Fingerprint reader with durable and highly accurate ZK optical sensor
  • 1 touch a-second user recognition
  • Stores 500 templates and 30,000 transactions
  • Reads Fingerprint and/or CARD
  • OPTIONAL integrated ID CARD and smart CARD reader
  • Built-in Serial and Ethernet ports
  • Tamper-proofs switch and alarm outputs
  • Request-to-exit and alarm contacts
  • Audio-Visual INDICATIONS for acceptance and rejection of valid/invalid fingers
Fingerprint Capacity 500 Templates
Transaction Capacity 30,000 Transactions
Sensor ZK Optical Sensor
Communication RS485, SD Card
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
Wiegand Signal Output
Optional Function ID Card, Mifare Card
Power Supply

12V DC

Operating Temperature 0 °C- 45 °C
';

Cables

Diode (FR107)

Installation Guide

Screw driver

Screws

F6

0.4 Mb Data Sheet
2015-11-04

F6 Installation Guide

2.2 Mb Installation Guide
2015-11-04

F6 User Manual

5.1 Mb User Manual
2015-11-04
