FB1000
  • Electronic Anti-Pinch Function: Auto-suspension of door closure when human is detected.
  • Direct Current Operation: Low failure rate to ensure stability and reliability
  • Alarm Function: Auto warning and alarming if unauthorized entry with swiping card occurs.

FB1000: Single Lane Flap Barrier
FB1011: Single Lane Flap Barrier with RFID Access Control System
FB1022: Single Lane Flap Barrier with Fingerprint and RFID Access Control System
FB1200: Double Wing Flap Barrier for Additional Lane
FB1211: Double Wing Flap Barrier for Additional Lane with RFID Access Control System
FB1222: Double Wing Flap Barrier for Additional Lane with Fingerprint and
RFID Access Control System

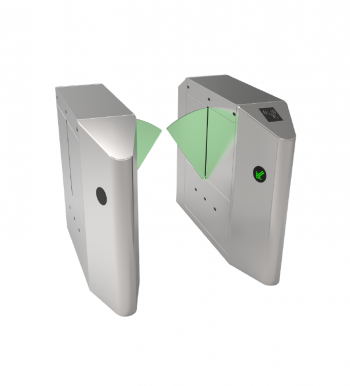

FB1000 is a single-lane flap barrier consisting of a master-device and a
slave-device to form an entrance.
FB1200 is a double-wing flap barrier to be equipped with FB1000 to form
multi-entrances.

Flap Barriers are well adopted in entrances and exits of buildings or construction sites, to help tracking staffs and visitors. Only authorized users are able to access to specific areas through the flap barriers. Lights on the barriers are to indicate status of the flap barriers. Steady green lights indicate locked barriers. Blinking green lights indicate accessible barriers.

ZKTeco’s assembled access control system significantly reduces costs for business partners. RFID, fingerprint verification, face recognition, and vein verification technologies are available for options of flexible access control system.

  • Electronic Anti-Pinch Function: Auto-suspension of door closure when human is detected.
  • Direct Current Operation: Low failure rate to ensure stability and reliability
  • Alarm Function: Auto warning and alarming if unauthorized entry with swiping card occurs.
  • Flexible switching of reader panel to assemble various readers.

Passage Width

600mm

Capacity

25-30/minute

Flap opening/closing time

1S

Overall Width

1200mm

Barrier Height

785mm

Power Supply

AC110-220V,50Hz/60Hz

Operating Power Consumption

80W

Stationary Power Consumption

30W

Temperature

-28 to 60 °C

Net Weight

143Kg(FB1000) 86Kg(FB1200)

Gross Weight

212Kg(FB1000) 121Kg(FB1200)

Two way traffic

Yes

Automatic operation

Yes

Advanced sensor system

Yes

Audible alarm

Yes

LED lighting

Yes

Traffic indicator lights

Yes

Fail-safe

Yes

FB1000/1200

0.66 Mb Data Sheet
2016-07-14

FB1000/1200 User Manual

2.95 Mb User Manual
2016-07-14
