FB3200
    • Electronic Anti-Pinch Function: Auto-suspension of door closure when human is detected.
    • Direct Current Operation: Low failure rate to ensure stability and reliability



FB3000: Single Lane Flap Barrier
FB3011: Single Lane Flap Barrier with RFID Access Control System
FB3022: Single Lane Flap Barrier with Fingerprint and RFID Access Control System
FB3200: Double Wing Flap barrier for Additional Lane
FB3211: Double Wing Flap barrier for Additional Lane with RFID Access Control System

FB3222: Double Wing Flap barrier for Additional Lane with Fingerprint and RFID Access Control System

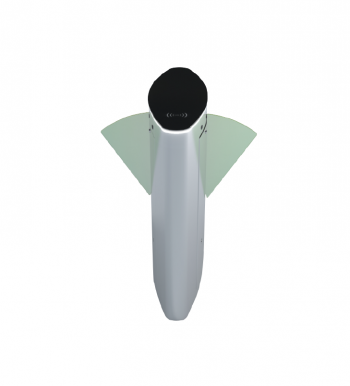

FB3000 is a single-lane flap barrier consisting of a master-device and a slave-device to form an entrance.
FB3200 is a double-wing flap barrier to be equipped with FB3000 to form multi-entrances.

Flap Barriers are well adopted in entrances and exits of buildings or construction sites, to help tracking staffs and visitors. Only authorized users are able to access to specific areas through the flap barriers. Lights on the barriers are to indicate status of the flap barriers. Steady green lights indicate locked barriers. Blinking green lights indicate accessible barriers.

ZKTeco’s assembled access control system significantly reduces costs for business partners. RFID, fingerprint verification, face recognition, and vein verification technologies are available for options of flexible access control system

  • Electronic Anti-Pinch Function: Auto-suspension of door closure when human is detected.
  • Direct Current Operation: Low failure rate to ensure stability and reliability
  • Alarm Function: Auto warning and alarming if unauthorized entry with swiping card occurs.
  • Multiple lid options for different decorative style

Passage Width

600mm

Capacity

25-30/minute

Flap opening/closing time

1S

Overall Width

1200mm

Barrier Height

785mm

Power Supply

AC110-220V,50Hz/60Hz

Operating Power Consumption

110W

Stationary Power Consumption

60W

Temperature

-28-60 °C

Net Weight

135Kg(FB3000), 86Kg(FB3200)

Gross Weight

205Kg(FB3000), 121Kg(FB3200)

Two way traffic

Yes

Automatic Operation

Yes

Advanced sensor system

Yes

Audible alarm

Yes

LED lighting

Yes

Traffic indicator

Yes

Fail-safe

Yes



Model FB3000 FB3011 FB3022 FB3200 FB3211 FB3222
Access Control N/A C3-200 inBIO260 N/A C3-200 inBIO260
Reader N/A 2*KR100E 2*FR1200 N/A 2*KR100E 2*FR1200
Card Capacity N/A 30,000 30,000 N/A 30,000 30,000
Fingerprint Capacity N/A N/A 30,000 N/A N/A 30,000
Event Capacity N/A 100,000 100,000 N/A 100,000 100,000

FB3200

0.51 Mb Data Sheet
2017-03-29

FB3200

2.51 Mb User Manual
2017-03-29
