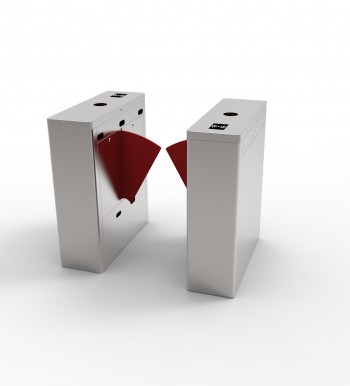

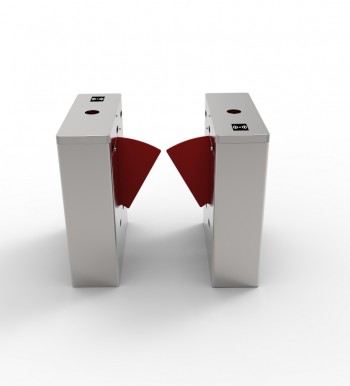

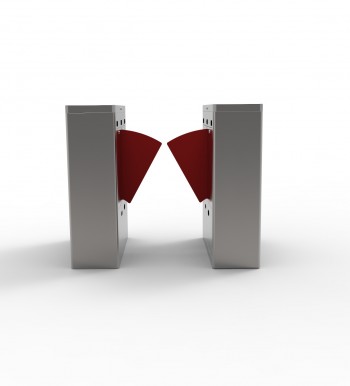

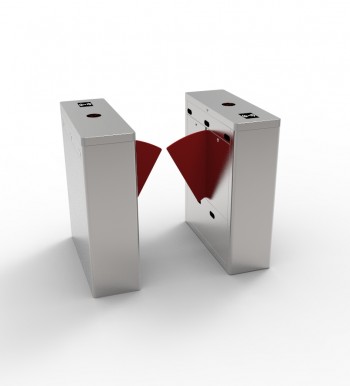

The ZKTeco FBL1000 single lane flap barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume.
The FBL1000 is a single lane flap barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL1000 highly durable. FBL1000 barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL1000’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side.
During emergencies the barriers automatically retract upward, thereby ensuring users FAST unencumbered exit to safety. A battery for power outage safety can be installed for retracting the barrier automatically.
FBL1000 provides both security and convenient space, all in a very durable and elegant compact design.
Power requirements |
AC 100 ~ 120V/200 ~ 240V, 50/60Hz |
|
Working temperature |
-28℃~60℃ |
|
Working humidity |
5%~80% |
|
Working environment |
Indoor/outdoor (if sheltered) |
|
RFID |
Maximum 42/ minute |
|
Speed of throughput |
Fingerprint |
Maximum 35/ minute |
Face |
Maximum 11/ minute |
|
Vein |
Maximum 23/ minute |
|

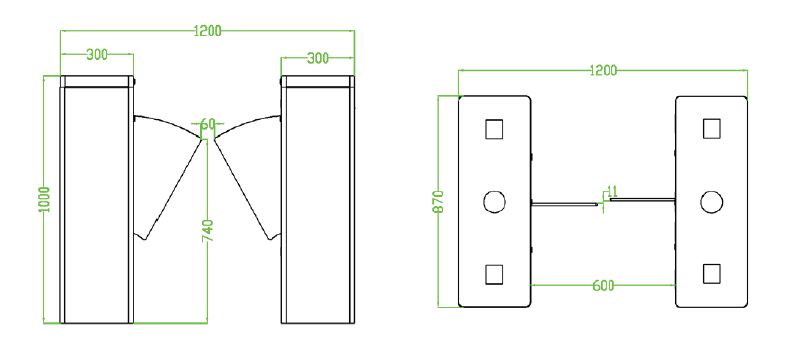

Lane width(mm) |
600 |
|
Footprint(mm*mm) |
1200*870 |
|
Dimensions(mm) |
L=870,W=300,H=1000 |
|
Dimension with packing(mm) |
L=1000,W=840,H=1090 |
|
Net weight(kg) |
97 |
|
Weight with packing(kg) |
153 |
|
LED indicator |
Y |
|
Cabinet material |
SUS304 Stainless Steel |
|
Lid material |
SUS304 Stainless Steel |
|
Barrier material |
Acrylicl |
|
Barrier movement |
Retracting |
|
Emergency mode |
Y |
|
Security level |
Medium |
|
MCBF |
2 million |
