FBL2000
  • High quality electrical components
  • Barriers retract automatically during emergencies
  • LCD on the flap barrier control board, easy operation

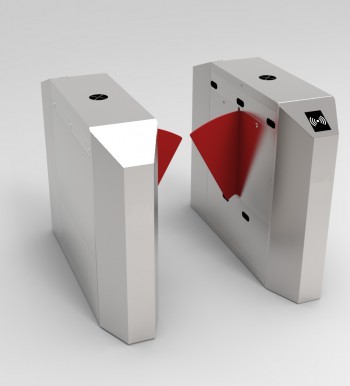

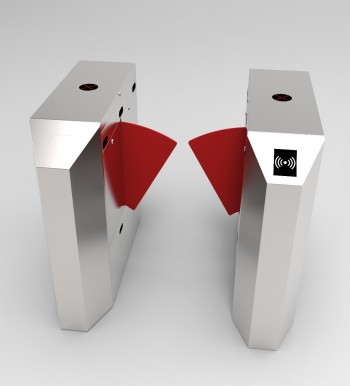

The ZKTeco FBL2000 single lane flap barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume.

The FBL2000 is a single lane flap barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL2000 highly durable.

FBL2000 barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL2000’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side.

During emergencies the barriers automatically retract upward, thereby ensuring users FAST unencumbered exit to safety. A battery for power outage safety can be installed for retracting the barrier automatically.

FBL2000 provides both security and convenient space, all in a very durable and elegant compact design.

  • SUS304 stainless steel casework ensure long-lasting durability
  • High quality electrical components
  • Barriers retract automatically during emergencies
  • Barriers retract automatically during power outage with battery installed
  • All smooth finish. No exposed screws
  • Ergonomic design makes card and fingerprint authentication fast & simple for users
  • FBL2000 series ships already integrated with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense
  • FBL2000 series and associated access control readers are all factory-tested prior to shipping
  • ZKTeco provides true plug&play turnstiles with the lowest possible total cost of ownership in the industry
  • Simplification
  • LCD on the flap barrier contrl board, easy operation

Power requirements

AC 100 ~ 120V/200 ~ 240V, 50/60Hz

Working temperature

-28℃~60℃

Working humidity

5%~80%

Working environment

Indoor/outdoor (if sheltered)



RFID

Maximum 42/ minute

Speed of throughput

Fingerprint

Maximum 35/ minute



Face

Maximum 11/ minute



Vein

Maximum 23/ minute

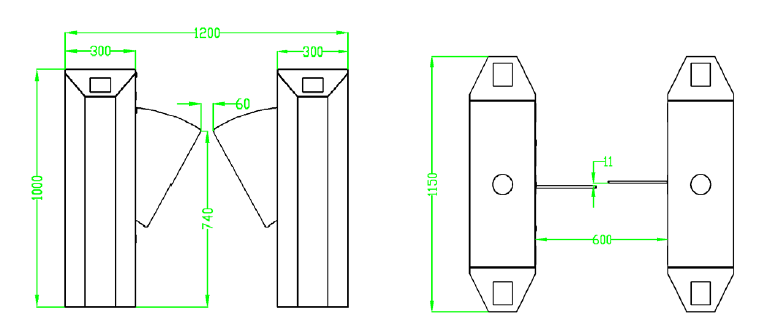

Lane width(mm)

600

Footprint(mm*mm)

1200*1150

Dimensions(mm)

L=1150,W=300,H=1000

Dimension with packing(mm)

L=1480,W=420,H=1110

Net weight(kg)

119

Weight with packing(kg)

157

LED indicator

Y

Cabinet material

SUS304 Stainless Steel

Lid material

SUS304 Stainless Steel

Barrier material

Acrylicl

Barrier movement

Retracting

Emergency mode

Y

Security level

Medium

MCBF

2 million

';
