FL1000
- European standard mortise with 5 latches
- Face/Password/Card/Key
- ID/Mifare card reader is optional

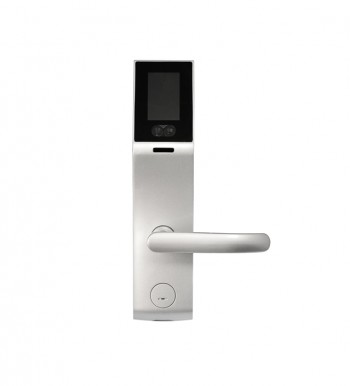

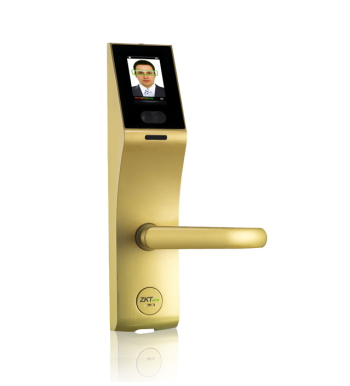

FL1000 is the world's first smart lock with embedded face recognition technology. It uses European standard mortise with 5 latches, the deadbolt will be locked automatically once the door is closed. It also has four unlocking ways - face, password, card, mechanical key.
- With the new generation face recognition algorithm
- European standard mortise with 5 latches
- Idle handle design to protect door lock
- 3 inch capacitive touch screen
- Icon Menu for easy and fast operation
- Four independent unlocking - face, password, card, mechanical Key
- Smart alarm for low battery & illegal operation
- Data upload/download via USB port
- Support passage mode - Normal Open
- Support query door open logs and illegal operation logs
- External terminals to draw back-up power from a 9V battery
- Backset is 55 mm
- 125khz ID card reader (optional)
- 13.56mhz Mifare card reader (optional)
- Remote open door (optional)
|
Material |
Zinc Alloy |
|
Face Capacity |
100 |
|
Password Capacity |
100 |
|
Card Capacity (optional) |
100 |
|
Log Capacity |
30,000 |
|
Communication |
USB flash disk |
|
Options |
ID card, Mifare card, Remote Control Key |
|
Operating Temperature |
0℃ -45℃ |
|
Power Supply |
8 x AA Alkaline Battery |
|
Backup Unlock |
Mechanical Key & 9V Battery |
|
Door Thickness |
35-50 mm (standard) |
|
|
50-65 mm (optional) |
|
|
65-80 mm (optional) |
Gasket
Indoor Unit
Installation Guide
Mechanical key
Mortise
Mounting plate
Outdoor unit
Screws
Spindles
Strike board
