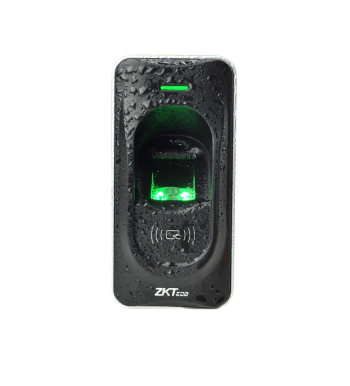

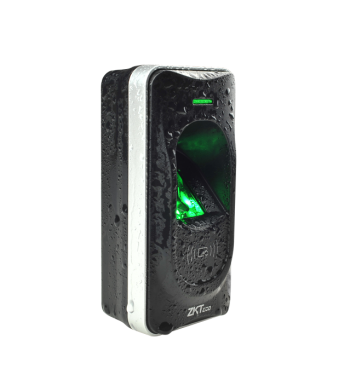

FR1200

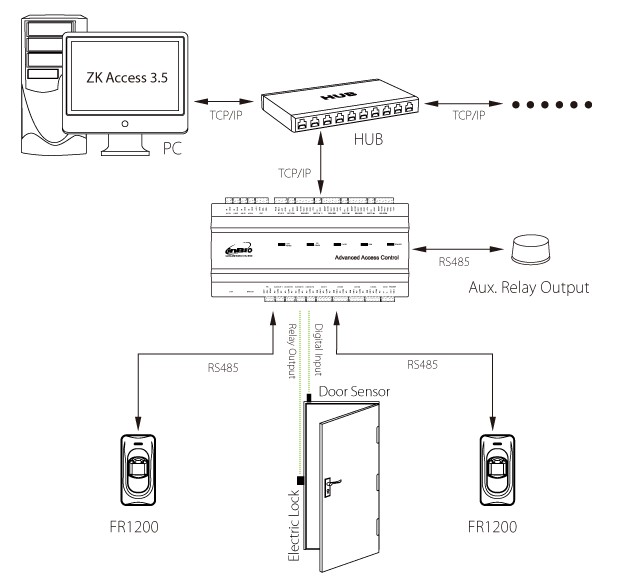

  • FR1200 works with inBIO series control panel or standalone device by RS485
  • IP65 certified for outdoor working environment
  • FR1200 has standard 125Khz ID Card module

FR1200, a fingerprint reader with RS485 communication interface works with biometric access controllers and fingerprint standalone access control, including inBIO series controllers, F8 and so on. It offers the function of capturing and transferring fingerprint samples to access control panel. With its IP65 rated rugged structure, FR1200 offers extra durability in all weather conditions including outdoor environments.

  • CPU: 324MHz
  • Sensor: ZK small-sized sensor
  • Communication: RS485
  • Standard function: ID Card Module
  • Optional function: MF Card Module
  • Voice Prompt: Buzzer
  • Working Voltage: 12VDC
  • Working Temperature: 0~45
  • Dimension(W*H*D)mm: 50*102*37.3
  • Protection Grade: IP65

Model

FR1200

CPU

324 MHz

Fingerprint Sensor

ZK Small Size Sensor

Algorithm Version

ZKFinger VX10.0

Communication

RS485

Standard Function

ID Card Module

Optional Function

MF Card Module

Voice Prompt

Buzzer

Power Supply

DC 12V

Operating Temperature

0 ~ 45°C (32°~113°F)

Protection Grade

IP65

Dimension(L x W x H)

102 x 50 x 37mm

';

Cables

ID card

Installation Guide

Screw driver

Screws

FR1200

0.45 Mb Data Sheet
2015-09-09

FR1200 Quick Start Guide

1.17 Mb Quick Start Guide
2015-09-09
