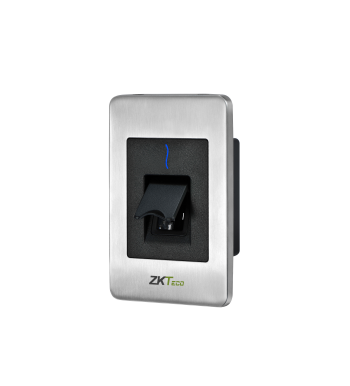

FR1500-WP

• Single gang Standard junction box installation.

• Flush-Mounted Design for neat installation.

• RS-485 Communication Interface.

• SilkID Fingerprint Sensor.

  • Single gang Standard junction box installation.
  • Flush-Mounted Design for neat installation.
  • RS-485 Communication Interface.
  • SilkID Fingerprint Sensor.
  • Stainless Steel Front casing.
  • Fingerprint Protective Cover.
  • Waterproof

Working Temperature

-10 °C ~ 45 °C

Working Humidity

20 ~ 95%

Dimensions(LxWxH)

121.3 × 77.3 × 38 mm

Algorithm

ZKFinger v10.0

Operating Voltage

12V DC

Stand-by Mode Power Consumption

12V*60mA=0.72W

Peak Current of Fingerprint scanning

140mA

Hardware

1.0 GHz CPU

ZKSilkID Sensor

Buzzer Prompt

Three-color Indicator Light

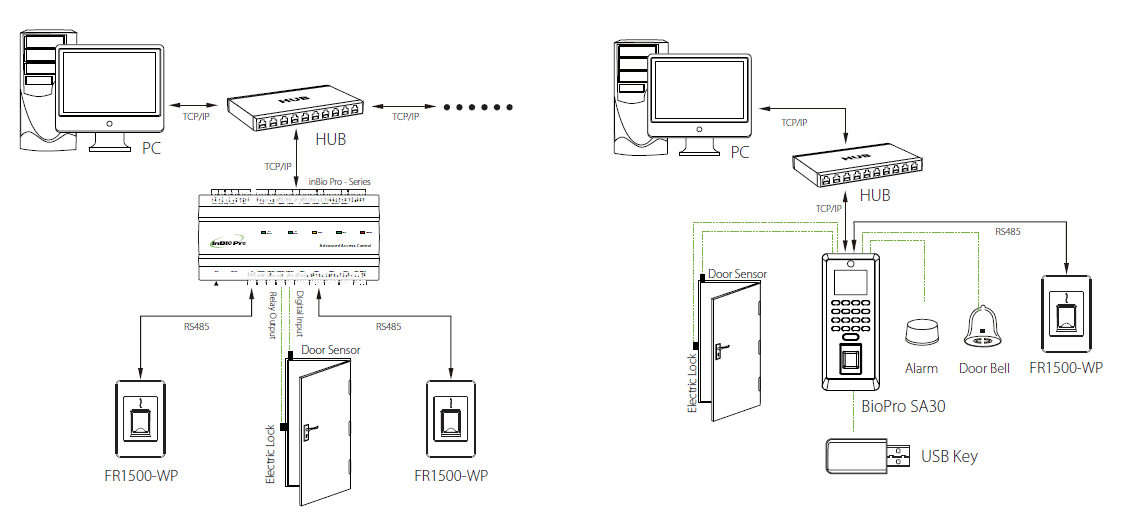

Compatibility

inBio/inBioPro Controllers

Standalone Fingerprint Devices

Optional Features

125KHz HID Prox Card

13.56MHz Mifare Card (S50/S70)

13.56MHz HID Iclass Card

Communication

RS485

';

FR1500-WP

0.31 Mb Data Sheet
2017-04-18

FR1500-WP Installation Guide

1.02 Mb Installation Guide
2017-04-18
