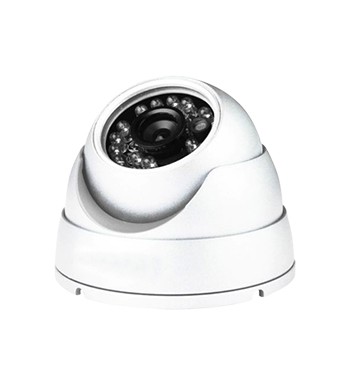

GT-ADF210/213
- OV9712/SONY238 sensor
- AHD HD video signal coaxial transmission
- Adopts 75-5 coaxial cable, transmission distance up to 500 meters
- Support 720P @ 25/30 long distance, real-time transmission in high speed
|
Model |
GT-ADF210 |
GT-ADF213 |
|
Sensor |
AHD 2431+OV9712 |
AHD 2431+ Sony IMX238 |
|
Light-sensing surface area |
1/4-inch |
1/2.8-inch |
|
Resolution |
1.0MP |
1.3MP |
|
Definition |
1280(H)x720(V) |
1280(H)x960(V) |
|
Video Frame |
1280×720@25 fps；1280×720@30 fps |
|
|
Frame Rate In Main Stream |
1—4Mbps |
1—5Mbps |
|
Min. illumination |
IR on: 0 Lux |
|
|
Lens |
3.6mm (2.8/6.0mm optional) |
3.6mm (6.0mm optional) |
|
Signal Noise Ratio |
40dB |
45dB |
|
White Balance |
Auto |
|
|
Shutter |
Auto |
|
|
Infrared Resection |
IR-CUT |
|
|
IR Distance |
10m |
|
|
Power Supply |
DC 12V /1.5A |
|
|
Operating Temperature |
-10℃～+50℃ |
|
|
Net/Gross Weight |
0.37kg/0.45kg |
|
|
Dimension(color box) |
100mm*100mm*92mm |
|
