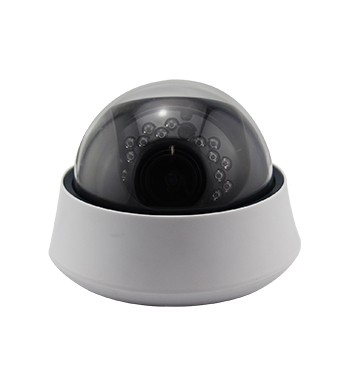

GT-ADI210/213
  • OV9712/SONY238 sensor
  • AHD HD video signal coaxial transmission
  • Adopts 75-5 coaxial cable, transmission distance up to 500 meters
  • Support 720P @25/30 long distance, real-time transmission in high speed

Model

GT-ADI210

GT-ADI213

Sensor

AHD 2431+OV9712

AHD 2431+ Sony IMX238

Light-sensing surface area

1/4-inch

1/2.8-inch

Resolution

1.0MP

1.3MP

De­finition

1280(H)x720(V)

1280(H)x960(V)

Video Frame

1280×720@25 fps;1280×720@30 fps

Frame Rate In Main Stream

1—4Mbps

1—5Mbps

Min. illumination

IR on: 0 Lux

Lens

2.8MM-12MM Varifocal lens as default

Signal Noise Ratio

40dB

45dB

White Balance

Auto

Shutter

Auto

Infrared Resection

IR-CUT

IR Distance

10m

Power Supply

DC 12V /1.5A

Operating Temperature

-10℃~+50℃

Net/Gross Weight

0.25kg/0.36kg

Dimension(color box)

130mm*130mm*115mm

GT-ADI210/213

0.2 Mb Data Sheet
2015-09-01
