Technical Specifications

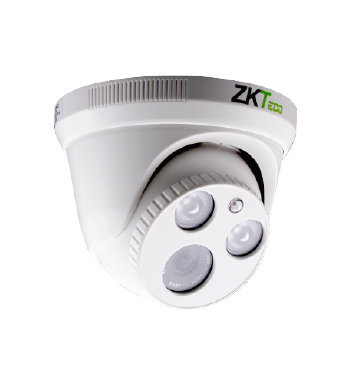

Model

GT-ADO220

Sensor

GC2023 CMOS sensor

Light-sensing surface area

1/3”

Resolution

2.0MP

Definition

1920(H)×1080(V)

Video Frame

1920x1080@25fps; 1920x1080@30fps

Min. illumination

0.01Lux (F1.2, AGC ON, 0 LUX with IR

Lens

4mm (6mm lens optional)

Shutter

Auto/1/50(1/60)s to 1/10,000s

D&N

IR-CUT

SNR

>46dB

Video Output

1.0V P-P AHD/TVI/CVI/CVBS

IR Distance

20m

Power Supply

DC12V±10%

Working Environment

-20 °C- 50 °C, Less than 95%RH

Gross/Net Weight

0.28kg/0.20kg

Dimension(color box)

130mm*130mm*102mm
