Technical Specifications

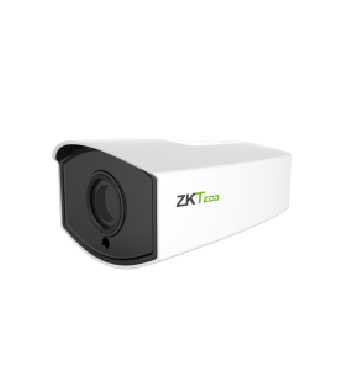

Model

GT-ADP210

Sensor

H42 CMOS sensor

Light-sensing surface area

1/4 ”

Resolution

1.0MP

Definition

1280(H)x720(V)

Video Frame

1280x720@25fps;1280x720@30fps

Min. illumination

0.01Lux (F1.2, AGC ON, 0 LUX with IR

Lens

4mm (6mm lens optional)

Shutter

Auto/1/50(1/60)s to 1/10,000s

D&N

IR-CUT

SNR

>46dB

Video Output

1.0V p-p

IR Distance

20m

Power Supply

DC12V±10%

Working Environment

-20 °C- 50 °C, Less than 95%RH

Gross/Net Weight

0.64KG/0.5KG

Dimension(color box)

230mm*130mm*117mm
