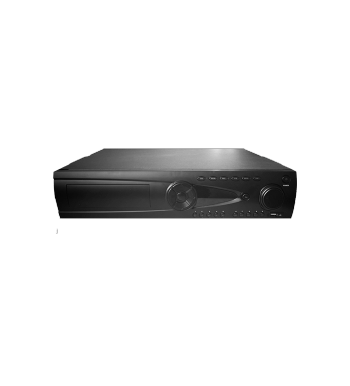

GT-ADR3208M
  • 32-ch video input
  • Supports hybrid video input –AHD, Analog and IP camera
  • With VGA, HDMI output
  • H.264 compression
  • 32-ch video input
  • Supports hybrid video input –AHD, Analog and IP camera
  • With VGA, HDMI output
  • H.264 compression
  • Supports phone monitoring (iPhone, Android)
  • With 8 SATA, max to 4TB/SATA
  • Supports web browser access
  • Support Multi-language
  • Support IE webserver, client software

Technical Specifications

Product Model

GT-ADR3208M

Video Compression

H.264 (High Profile)

Video Input

Pure Analog: 32*AHD-M, 24*AHD-M, 16*AHD-M, 16*AHD-L;
Mixed: 4*AHD-M(Analog)+4*720P(Network) / Pure Network: 1*1080P+8*720P; 20*960H;



Audio Compression

G.711A

Audio Input

32-ch RCA

Video Output

1-ch VGA, 1-ch HDMI

Audio Output

1-ch RCA

Backup

Network backup, USB HDD, SATA writer

Playback

8(pure local input mode)

Hard Disk Interface

8 SATA (Max 4TB/SATA)

Space Occupied

720P 20G / day;960H 12~20G / day*channel; Audio: 691.2M / day*channel

Input

16-ch BNC

Network Interface

RJ45 10M/100M adaptive ethernet interface

USB Interface

2 USB 2.0 ports

Serial Interface

One RS485, one RS232; support multiple PTZ protocols.

Power

DVR dedicated ATX Power Supply

Dimension(color box)

443mm*427.5mm*92mm
