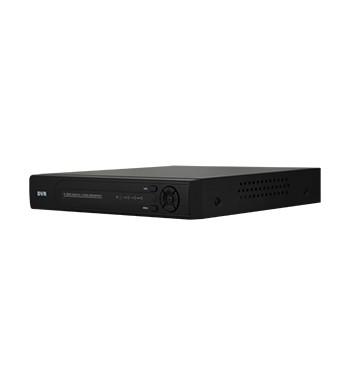

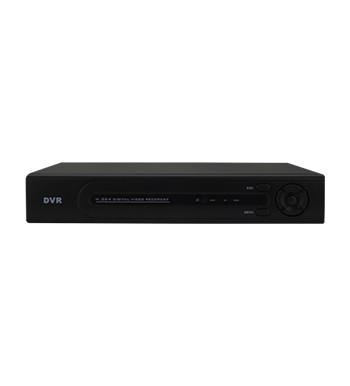

GT-ADR801M
  • 8-ch video input
  • Supports hybrid video input – AHD, Analog and IP camera
  • With VGA, HDMI HD output
  • 264 compression
  • Supports phone monitoring(iPhone, Android)
  • With 1 SATA, max to 3 TB
  • Supports web browser access

Product Model

GT-ADR801M

Video Compression

H.264 (High Profile)

Video Input

Analog: 8*AHD-M ; 4*AHD-M;

Mixed: 4* AHD-M (Analog)+4*720P(Network);

Network: 8*720P; 2*1080P+2*720P;

Audio Compression

G.711A

Audio Input

4-ch RCA

Video Output

1-ch VGA, 1-ch HDMI

Audio Output

1-ch RCA

Backup

Network backup, USB mobile hard disk

Playback

4 channels (1-ch real time)

Hard Disk Interface

1 SATA (Max to 3TB)

Space Occupied

720P 20G / day*channel; 960H 12~20G / day*channel; Audio: 691.2M / day*channel

Input

8-ch BNC

Network Interface

RJ45 10M/100M adaptive ethernet interface

USB Interface

2 USB 2.0 ports

Serial Interface

1 RS-485 Support multi kinds of PTZ protocol

Power

12V/2A

Dimension(color box)

345mm*95mm*275mm

Net/Gross Weight

1.0kg/1.8kg
