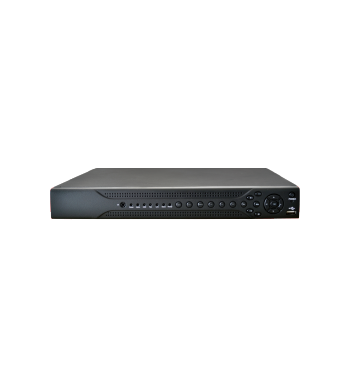

GT-ADR802/1602 MH
- 8/16-ch video input
- Supports hybrid video input - AHD-H, Analog and IP camera
- With VGA, HDMI HD output
- 8/16-ch video input
- Supports hybrid video input – AHD-H, Analog and IP camera
- With VGA, HDMI HD output
- H.264 compression
- 2 SATA, each HD max to 6TB
- Supports phone monitoring (iPhone, Android)
- Supports web browser access
- Support Multi-language
- Support IE web server, client software
- Support 4CH alram input and 1 CH output
Technical Specifications |
||
| Product Model | GT-ADR802MH | GT-ADR1602MH |
| Video Compression | H.264 (High Profile) | |
| Video Input | Analog: 8*AHD-MH ; | Analog: 16*AHD-MH ; |
| Mixed: 4* AHD-MH (Analog) | Mixed: 8* AHD-MH (Analog) | |
| +4*1080P(Network); | +8*1080P(Network) | |
| Network: 8*1080P;16*960P; | Network: 8*1080P+8*960P; | |
| Coding/Decoding | 8*AHD-H@12fps | 16*AHD-H@12fps |
| Input Mode | Each group (CH1&CH2, CH3&CH4, etc) support the same signal input | |
| Audio Input/Output | 8-ch RCA/1-ch RCA | 6-ch RCA/1-ch RCA |
| Video Output | 1-ch VGA, 1-ch HDMI | |
| Playback/Backup | 4 channels/Network backup, USB mobile hard disk | |
| Hard Disk Interface | 2SATA(MAX 6TB) | |
| Space Occupied | 720P 20G / day*channel | |
| Network Interface | RJ45 10M/100M adaptive ethernet interface | |
| USB/Serial Interface | 2 USB 2.0 ports/1 RS-485 Support multi kinds of PTZ protocol | |
| Power | 4A | |
| Dimension(color box) | 345mm*95mm*275mm | |
| Net/Gross Weight | 1.0kg/1.8kg | |
