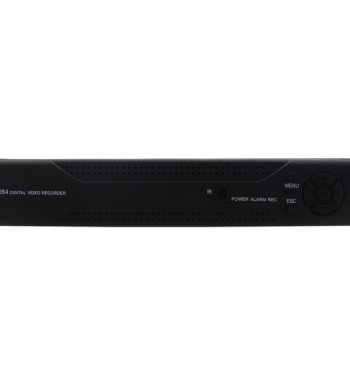

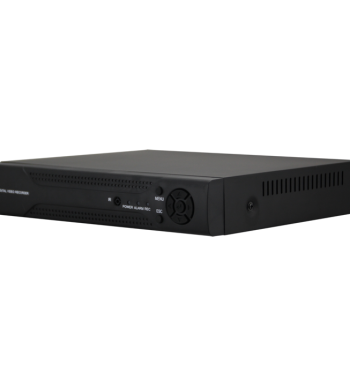

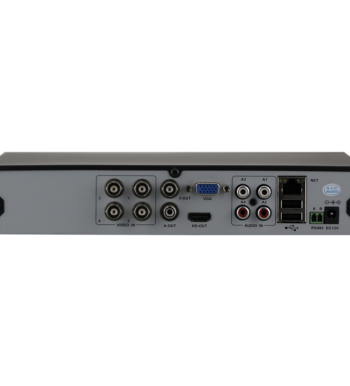

GT-QDR401
- 4-ch video input
- With CVBS, VGA, HDMI output
- 264 compression
- With 1 SATA, max to 3 TB
- Supports web browser access
- Support Multi-language
- Support client software and phone monitoring
|
Product Model |
GT-QDR401 |
|
Video Compression |
H.264 high prole 3.0 |
|
Frame Rate |
PAL:25 frame/second; NTSC:30 frame/second |
|
Video Input |
4CH 720P |
|
Video Output |
1* CVBS，1 * VGA ,1 * HDMI |
|
Video Intelligent |
Motion detection: active defaulted |
|
Video lost detection: active defaulted |
|
|
Audio Compression |
G711 |
|
Audio Input |
4 ch |
|
Audio Output |
1 ch |
|
Playback |
Local: 4 ch; Remote: 4 ch |
|
Dual Stream |
Support; mainstream: D1; secondary stream: CIF |
|
Network Interface |
RJ45 10M/100Madaptable Ethernet interface |
|
Mobile Monitoring |
IOS, android |
|
PTZ Control |
Support with 1 RS485 interface |
|
Hard Disk Interface |
One SATA (max to 3TB) |
|
USB Interface |
2 USB2.0 |
|
VGA Interface |
Support 1024*768(default),1280*720,1280*1024 definition |
|
Power Supply |
DC 12V |
|
Dimension(color box) |
280mm*77mm*308mm |
|
Gross Weight |
1.22kg |
