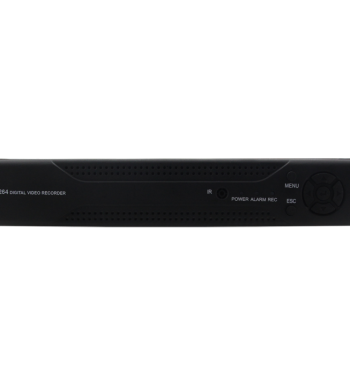

GT-QDR801-802
  • 8-ch video input
  • With CVBS, VGA, HDMI output
  • 264 compression
  • With 1 or 2 SATAS, max to 3 or 6 TB
  • Supports web browser access
  • Support Multi-language
  • Support client software and phone monitoring

Product Model

GT-QDR801

GT-QDR802

Video Compression

H.264 high pro­le 3.0

Frame Rate

PAL:25 frame/second; NTSC:30 frame/second

Video Input

8CH 720P

Video Output

1* CVBS,1 * VGA ,1 * HDMI

Video Intelligent

Motion detection: active defaulted



Video lost detection: active defaulted

Audio Compression

G711

Audio Input

4 ch

Audio Output

1 ch

Playback

Local: 4 ch; Remote: 4 ch

Dual Stream

Support; mainstream: 720P/960H; secondary stream: CIF 5FPS

Network Interface

RJ45 10M/100Madaptable ethernet interface

Mobile Monitoring

IOS, android

PTZ Control

Support with 1 RS485 interface

Hard Disk Interface

One SATA (max to 3TB)

2 SATAs (max to 6TB)

USB Interface

2 USB2.0

VGA Interface

Support 1024*768(default),1280*720,1280*1024 definition

Power Supply

DC 12V

Dimension(color box)

280mm*77mm*308mm

358mm*91mm*348mm

Gross Weight

1.26kg

1.58kg

GT-QDR801-802

0.15 Mb Data Sheet
2015-09-01
