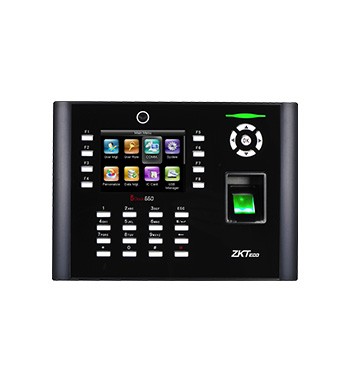

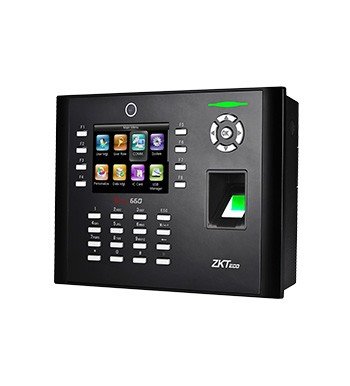

iClock660
  • TFT screen with GUI Interface
  • Less than a second recognition

iClock660 is an innovative biometric fingerprint reader for Time & Attendance applications, offering unparalleled performance using an advanced algorithm for reliable, precise, and excellent matching speed.

  • Color TFT screen with GUI Interface for ease of use
  • ZK Optical Sensor
  • 1 touch a-second user recognition
  • Stores 8,000 templates and 200,000 transactions
  • Reads Fingerprint and/or PINs
  • Optional integrated proximity or smart card reader
  • Built-in Serial and Ethernet ports
  • Built-in USB port allows for manual data transfer when network isn't available
  • Optional integrated Wi-Fi/GPRS also available
  • 8 user-defined function keys
  • Multi Language Support
  • Built in bell scheduling
  • Real-time 1-touch data export 3rd party hosted & non-hosted applications
  • Audio-Visual indications for acceptance and rejection of valid/invalid fingers
  • SDK available for OEM customers and software developers
Fingerprint Capacity 8000 templates
Transaction Capacity 200,000
Sensor ZK Optical Sensor
Algorithm Version ZK Finger v10.0

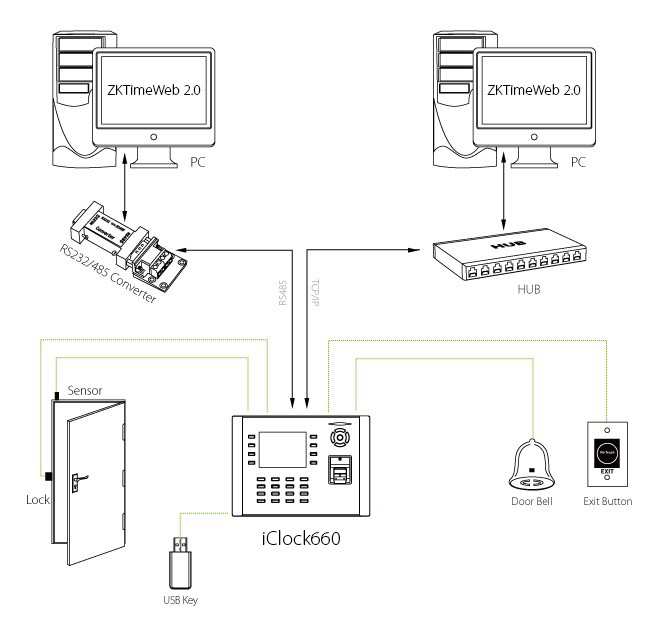

Communication RS232/485, TCP/IP, USB-host
Camera 300,000 pixels
Standard Functions Workcode, SMS, DLST, Scheduled-bell,  Self-Service Query, Automatic Status Switch, T9 input, photo-ID
Optional Functions ID/Mifare/HID/iClass, Webserver, 9 digit user ID, Wi-Fi, GPRS
Display 3.5 inches TFT screen
Power Supply 12V DC 1.5A
Operating temperature 0­-45 degrees
Operating Humidity 20% - 80%
Dimension 205.6 x 150 x 41.6 mm
Gross Weight 1.3 kg
';

Back Plate

Power adapter

RJ45 to RS485 2 pin cable

Screw driver

Screws

USB cable

iClock660

1.31 Mb Data Sheet
2015-09-30
Download
