- 3.5 inch TFT screen Time & Attendance and Access Control Terminal
- New user friendly firmware
- Stunning GUI
- Stable
- Faster matching speed
iClock680 offers unparalleled performance using an advanced algorithm for reliable, precise, and excellent matching speed. Users can easily manage data by networking the device via RS232/485, TCP/IP, and USB client.
It is the perfect solution for all kinds of installations since all the functions can still operate in a networking state. It supports data backup and retrieval to avoid the risk of accidental deletion.
Remarkable User Experience
- Intuitive and stunning UI design
- Interface operation adopts modularized hierarchical design.
- Faster matching speed: Less than 1 second.
Enhanced Features and Performance
- User validity settings.
- Data backup and retrieval.
- Advanced User ID consisted of letters and numbers
- Chip encryption for firmware protection.
- More flexible menu configuration: double line text display.
- External printer for attendance records output (Optional).
- Optional integrated Wi-Fi\GPRS.
- Relay contacts for alarm, bell, lock, exit, switch, etc.
- Easy to extend functions and customize customers demand.

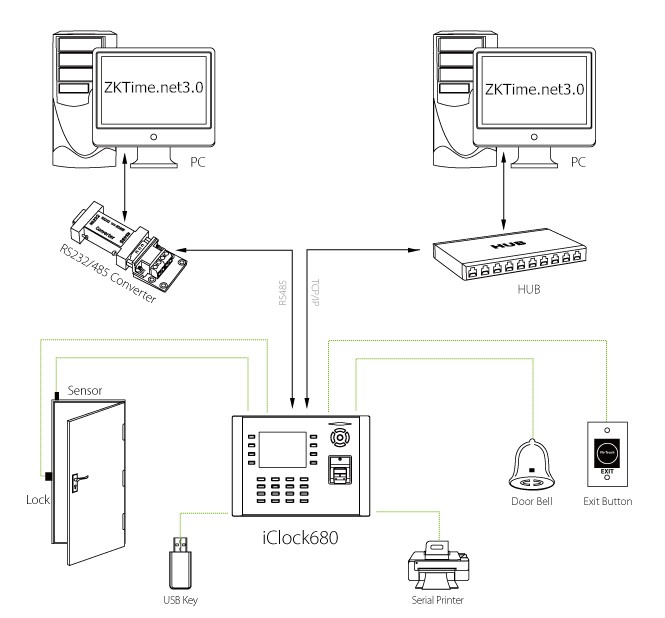

Access Control Interfaces
- For Wiegand-in, Wiegand out, door lock connection, alarm, and bell.
|
Fingerprint Capacity |
8000 |
|
ID Card Capacity |
10,000 (Optional) |
|
Record Capacity |
200,000 |
|
Display |
3.5-inch Screen |
|
Communication |
TCP/IP, RS232/485, USB (host & Client) |
|
Standard Functions |
Workcode, SMS, DST, Scheduled-bell, Self Service Query, Automatic Status Switch, T9 input, and photo ID , 9 digit user ID |
|
Optional Functions |
ID/Mifare/HID, Webserver and Wi-Fi, 3G and GPRS |
|
Software |
ZKTime.Net |
|
Power Supply |
DC 12V 1.5A |
|
Verification Speed |
≤ 1 sec |
|
Operating Temp. |
0°C- 45°C |
|
Operating Humidity |
20%-80% |
|
Dimension |
250.6×150×41.6mm (Length×Width×Thickness) |
|
Gross Weight |
1.40 kg |
';
Wires
Mounting paper
Power adapter cable
Power adapter
Screw driver
