KITDV101
  • 264 Compression
  • Real time record and playback
  • Mobile view (Iphone, Android)
  • 0 Interface
  • Multi-language supported
  • UPNP ,Free DDNS (Build-In Domain)and P2P

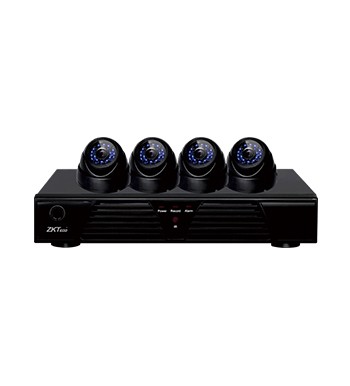

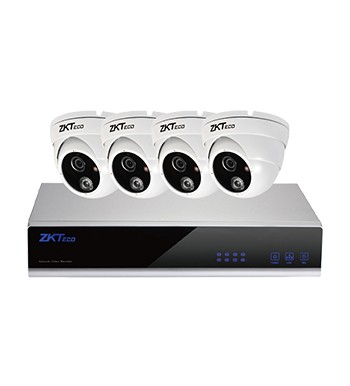

4CH bullet camera & DVR kit;4CH dome camera & DVR kit; Super video quality, HD up to 720P Dual H.360 streams Elegant and compact design Built-in POE and WIFI(Optional) On board storage.

DVR Parameter

Model

ZKDV0401K

Main Processor

Industrial embedded micro-controller

O/S

Embedded Linux system

System Source

Multi-channels recording, playback, operation and USB backup

O/S Interface

16 Bit real-color manual, support mouse operation

Display Frame

1/4 split display

Video System

PAL (625TVL); NTSC(525TVL)

Preview Resolution

PAL, D1(704×576),CIF(352×288;NTSC,D1(704×480) CIF(352×240)

Playback Resolution

PAL, CIF(352×288); NTSC, CIF (352×240)

PAL, D1(704×576); NTSC, D1 (704×480)

Code Capacity

4D1@25fps real-time

Motion Detection

396 (22*18) detection zone in each display frame settable

Audio Compression

G711A

Intercom

Support

Recording Mode

Manual , alarm , motion detection , schedule recording

Local Playback

Single CH , multi CH (support 8 CH CIF play back at real-time)

Search Mode

time, calendar, event, channel search

Storage Regulation

Audio : 28.8MBit/H & video:25-450MBit/H

Record Storage

Hard disk and network

Backup Mode

Network, USB disk, USB CD

Video Input

4CH BNC, 1.0Vp-p, 75Ω

Video Output

1CH HDMI, 1CH BNC, 1.0Vp-p, 75Ω, 1CH VGA output

Audio Input

4CH RCA, 200-2800Mv, 30KΩ

Audio Output

1CH RCA, 200-3000Mv, 5KΩ

Alarm Input

N/A

Alarm Output

N/A

Network Interface

RJ45 10M/100M

PTZ Control

Yes

USB Interface

2 USB Interface

SATA

1 SATA (max to 3T)

Power Supply

12V/3A

Consumption

<10W(Hard disk excluded)

Working Temperature

0°C-+55°C

Working Humidity

10%-90%

Atmospheric Pressure

86kpa-106kpa

Dimension

30.8*33*7.5mm

Weight

1.3kg (Hard disk excluded)

Camera Parameter

Model

ZK-SIR291K / ZK-SMD291K

Image Sensor

1/4”CMOS

Pixels

PAL:752Hx582V NTSC:768Hx494V

Horizontal Resolution

600TVL

Min Illumination

0.1Lux/F1.2

System

PAL/NTSC

IR LED

18 built-in Φ5 IR lamp

Day / Night Mode

Automatically IR-cut filter

Lens

3.6mm (6mm optional)

SNR

≥48db (AGC OFF)

Shutter Speed

1/50(1/60)~1/120000 seconds

Gamma Correction

0.45

White Balance

Auto

Backlight Compensation

Auto

Sync Mode

Internal synchronization

Video Out Rate

1.0Vp-p at 75Ω

Power

DC12V

Working Temperature

-10℃~50℃

Storage Temperature

-20℃~60℃

Dimensions(mm)

147(L)×69(H)mm

Gross Weight

430g(ZK-SIR291K) / 150g(ZK-SMD291K)

KITDV101

0.9 Mb Data Sheet
2015-09-01
