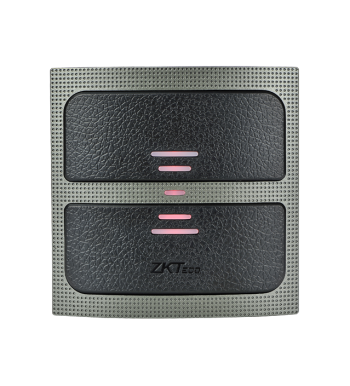

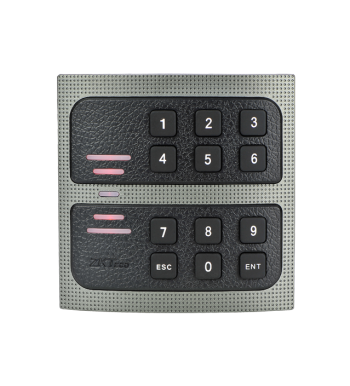

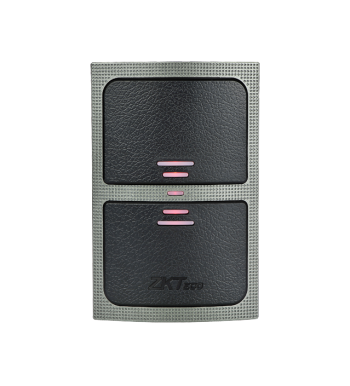

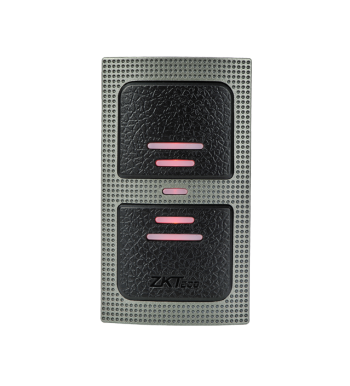

KR500 Series
- 125kHz EM or 13.56MHz Mifare card reader

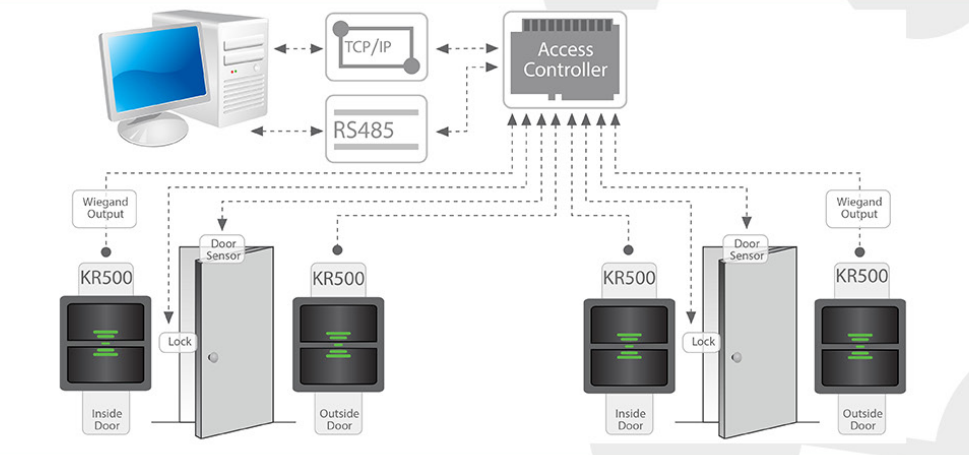

- Wiegand interface
- Speed and Reliability
- Read range of up to 10cm for proximity card and 5cm for Mifare card
- External LED control
- External Buzzer Control
- Indoor/Outdoor operation
- Solid Epoxy potted
- Waterproof IP64 or IP65
- Reverse Polarity Protection
|
Read Range |
KRxxx-E: Up to 10CM • KRxxx-M: Up to 5CM |
|
Reading Time |
≤200ms |
|
Input Port |
External LED Control • External Buzzer Control |
|
Output Port |
KRxxx-E: 26bit Wiegand (Default) • KRxxx-M: 34bit Wiegand (Default) |
|
Power/Current |
DC 6-14V / Max.70mA |
|
LED |
Red and Green LEDs |
|
Operating Temperature |
-10°C to +65°C |
|
Material |
ABS+PC with texture |
|
Operating Humidity |
10% to 90% relative humidity • non-condensing |
|
Beeper |
Yes |
|
Operating Humidity |
KR500-E/M: IP65 • KR501-E/M: IP65 • KR502-E/M: IP64 • KR503-E/M: IP65 |
';
KR500 Series
4.36 Mb
Data Sheet
2015-11-04
