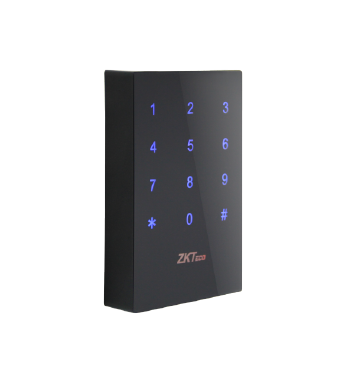

KR702
  • IP65 waterproof
  • The full acrylic craft shell,fashion and durable
  • Seal design,and can be used directly in the outdoor

KR702 reader is a full touch key waterproof reader,the Product is IP65 waterproof, and can be used for outdoor. The reader further enrich the diversity of ZK reader product. Meanwhile, the product is made of full acrylic appearance, full touch key, design high-end fashion, and suitable for the application of high-end places.

  • Full touch key
  • IP65 waterproof
  • The full acrylic craft shell,fashion and durable
  • Seal design,and can be used directly in the outdoor

Model

KR702E

KR702M

Wiegand Signal

Wiegand 26

Wiegand 34

Power Supply

12V DC,<90mA

Effective Distance

0~8cm(Different according to different working
conditions and different card)

Read Time

<80ms

Operating Frequency

125KHz

13.56MHz

Operating Temperature

0 °C- 70 °C

Operating Humidity

20%-80%

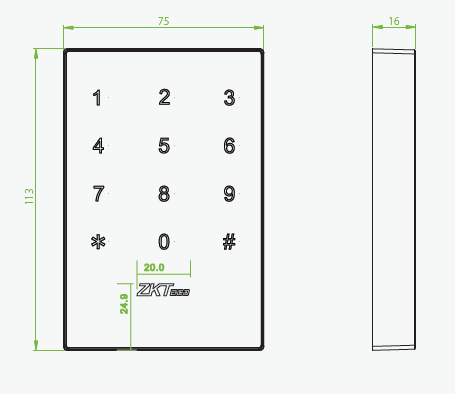

Dimension(LxWxH)

113x75x16mm

';

KR702

0.17 Mb Data Sheet
2017-03-01
