- Multi-languages.
- Communication: TCP/IP, USB-Host, Wi-Fi (Optional).
- High verification speed.

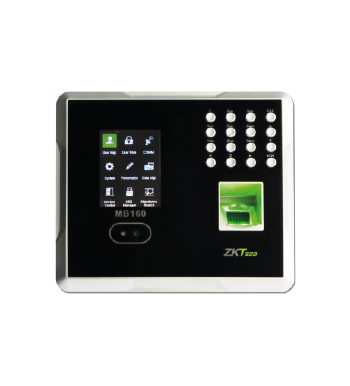

MB160 is an innovative product featured with ZK advanced fingerprint and face recognition technologies. It supports multiple verification methods including face, fingerprint, card, password, combinations between them and basic access control functions.
User verification is performed in less than 1 seconds, which streamlines the process of access.

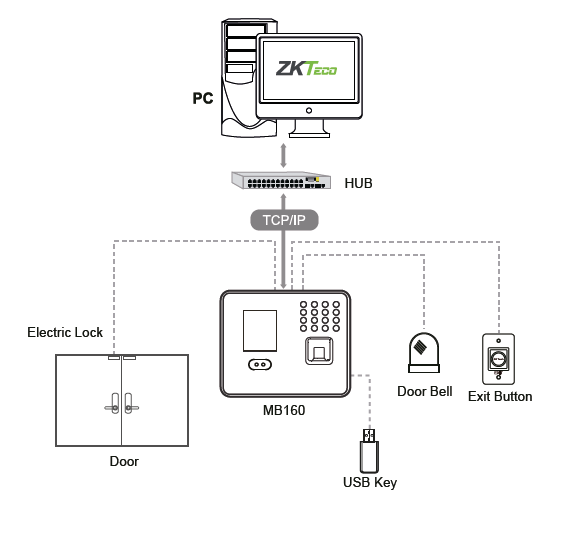

The communication between the MB160 and PC is by TCP / IP or USB interface for manual data transfer. Its sleek design fits perfectly in any environment.
- 1,200 Faces, 1,500 Fingerprints, 100,000 Records and 2,000 Cards (optional).
- Communication: TCP/IP, USB-Host, Wi-Fi (Optional).
- High verification speed.
- Professional firmware and platform make it more flexible.
- Intuitive and stunning UI design.
|
Face Capacity |
1200 |
| Fingerprint Capacity | 1500 |
|
ID Card Capacity |
2000(Optional) |
|
Record Capacity |
100,000 |
|
Display |
2.8-inch TFT Screen |
|
Communication |
TCP/IP, USB-Host, Wi-Fi (Optional) |
|
Standard Functions |
SMS, DST, Schedule-bell, Self-Service Query, Automatic Status Switch, T9 Input, Photo ID, Camera, Multi-verification,12V Output,RS232 Printer(Optional Cable) |
|
Interface fot Access Control |
3rd Party Electric Lock, Exit Button, Alarm |
|
Optional Functions |
ID / MIFARE Card, Work Code, ADMS |
|
Power Supply |
DC 12V 1.5A |
|
Verification Speed |
≤1 Sec. |
|
Operating Temp. |
0°c-45 °C |
|
Operating Humidity |
20%-80% |
|
Dimensions |
167.5x148.8x32.2 mm (Length*Width*Thickness) |
';
