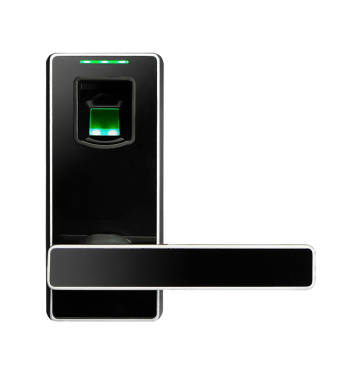

ML10B/ML10DB
  • Support bluetooth connection
  • Unlock door and manage users by ZKBioBT App
  • With the new generation fingerprint recognition algorithm

ML10B/ML10DB series is a smart lock with embedded fingerprint recognition technology. It supports bluetooth connection, and unlock door and manage users by mobile phone.

  • Support bluetooth connection, unlock door and manage users by ZKBioBT App
  • With the new generation fingerprint recognition algorithm
  • Rugged, sleek and compact design
  • Independent clutch motor design under patent protection
  • Idle handle design to prevent from forcible entry
  • Registration data are stored even if there is power loss
  • Handle, latch and strike is reversible design for all door open direction
  • Capacitive sensing technology - Touch to open
  • Emergency key override (concealed)
  • LED indicator and inbuilt buzzer
  • External terminals to draw back-up power from a 9V battery
  • Low battery warning
  • Normal Open mode
  • Easy to program and easy to use
  • Easy to install–no wiring required
  • 3 user groups - Admin, Normal User and Temporary User
  • American standard single latch for easy installation and replacement - ML10B
  • German standard mortise with one latch and one deadbolt- turn handle upward to lock the deadbolt for more security- ML10DB

Material

Zinc Alloy

User Capacity

Admin - 10

Normal User - 60

Temporary User - 20

iOS Versions

7.0 and above

Backset

60mm or 70mm(adjustable) -ML10

62 mm -ML10DB

Operating Temperature

0°C - 45°C

Power Supply

4 x AA Alkaline Battery

Battery Life

Over 6000 times (approx1 year)

Backup Unlocking Way

Mechanical Key & 9V Battery

Door Thickness

30-38 mm(optional)

39-46 mm(standard)

47-54 mm(standard)

55-60 mm(optional)

Dimensions

Front - 69(W) × 155(L) × 35(D)mm

Back - 69(W) × 155(L) × 25(D)mm
