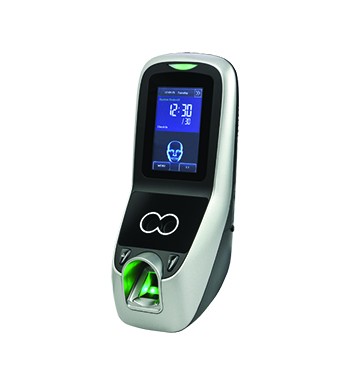

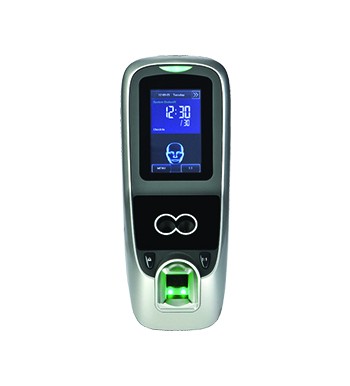

Multibio700
  • Easy installation and connectivity
  • Multi-biometric Technology
  • Full Access Control Features
  • Good Performance in Dark Environment

MultiBio 700 is a new generation multiple biometric identification product, standard integrating with Face, Fingerprint, PIN recognition and optional with RFID mode, as to facial identification algorithm, it captures the relative position, size, and shape of user’s eyes, nose, cheekbones, and jaw features, these feature templates are used to be matching feature data, when users verify on device, it distills captured features into value and compares with templates to eliminate variance.

MultiBio 700 may hold 400 faces (optional 3000) without dividing groups, its default identification mode is Fingerprint & Face, additionally, as it is a kind of professional access control facial device, it may work with the third party such as electric lock, alarm, door belling, sensor and so on, in order to improve security for human life and enterprise information.

  • Default verification mode is Fingerprint & Face, available to choose other 19 modes, such as RFID & Face, Face & PIN, Fingerprint only, RFID only.
  • Elegant ergonomic design
  • TCP/IP, RS232/485 communication and USB Host.
  • 0 inch TFT touch screen, T9 Input, 9 Digit User ID.
  • 2 user-defined function keys, the left one is for door belling, the right one is for shift of identification mode.
  • Infra-red optical system enables user-identification in poorly lit environments.
  • Wiegand input for working with wiegand reader, wiegand output for connecting to access control panel.
  • Optional with ID card module or Mifare card module (available when using ZKFinger9.0 algorithm).

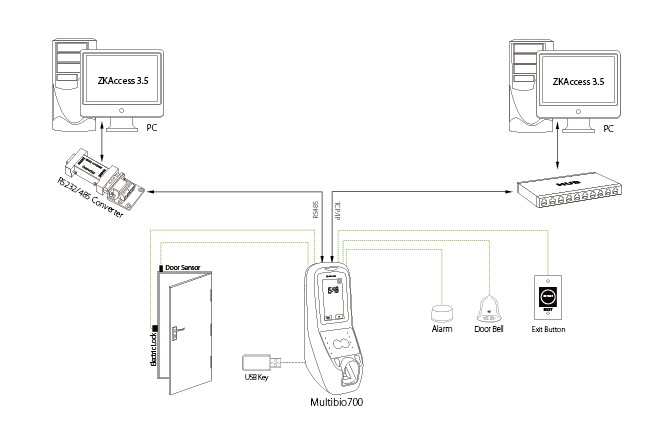

  • Professional access control compatible with the 3rd party door sensor, alarm, exit button, wired bell and electric lock.
  • 50 time zones, 99 groups and 10 unlock combinations, anti-pass back and dismantle function.

Display

3-inch Touch Screen

Face Capacity

1,500 (1:N)

Fingerprint Capacity

2,000

ID Card Capacity(optional)

10,000

Log Capacity

100,000

Camera

High Resolution Infrared Camera

Sensor

ZK Optical Sensor

Communication

TCP/IP, RS232/485, USB-host

Access Control Interface for

3rd party electric lock, door sensor, exit button, alarm, wired doorbell

Anti-pass back Function

Yes

Wiegand Signal

Input & Output

Standard Access Control Function

Time Zone, Group, Multi-identification Duress mode, Anti-passback, Tamper alarm

Optional Functions

ID Card, Mifare Card

Power Supply

12V DC

Operating Temperature

0 - 45 °C

Operating Humidity

20% -80%

Dimension(L×H×D)mm

275×100×195

Gross Weight

0.87kg

';

Cables

Diode (FR107)

Installation Guide

Quick Start Guide

RJ45 connector

Screw driver

Screws

Multibio700

2.39 Mb Data Sheet
2015-09-09

Multibio700 User Manual

9.64 Mb User Manual
2015-09-09

Multibio700 Installation Guide

1.81 Mb Installation Guide
2015-09-09
