PL10R
  • Designed for DIY which enables you to replace a knob lock by yourself easy and quick
  • Advanced 13.56mhz Mifare card technology

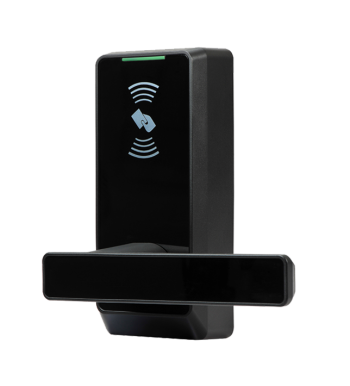

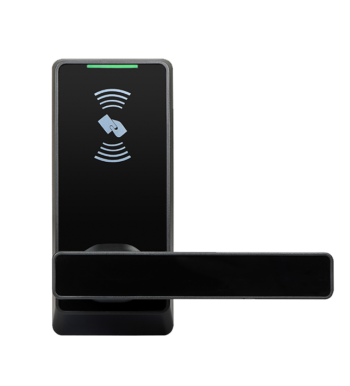

PL10R is a smart lock with advanced RFID technology. It is designed for DIY, which enables you to replace a knob lock with it by yourself easily and quickly.

  • Advanced 13.56mhz Mifare card technology
  • Rugged, sleek and compact design
  • American standard single latch for easy replacement and installation
  • Independent clutch motor design under patent protection
  • Idle handle design to prevent forcible entry
  • Registration data are stored even if there is power loss
  • Handle, latch and strike are reversible for all door opening directions
  • Emergency key override (concealed)
  • LED indicator and inbuilt buzzer
  • External terminals to draw back-up power from a 9V battery
  • Low battery warning
  • Normal Open mode
  • Easy to program and easy to use
  • Easy to install - no wiring is required
  • 3 user groups- Admin, Normal User and Temporary User
  • Backset is 60 mm or 70mm (adjustable)

Material

Rugged ABS

User Capacity

Admin-10

Normal User-60

Temporary User-20

 Operating Temperature

 -10°C - 55°C

Power Supply

4 x AA Alkaline Battery

Backup Unlocking Way

Mechanical Key & 9V Battery

Door Thickness

30-38 mm (optional)

39-46 mm (standard)

47-54 mm (standard)

55-60 mm (optional)

 Dimensions

Front - 69(W)×155(L)×35(D) mm

Back - 69(W)×155(L)×25(D) mm

Allen key

Card

Gasket

Indoor Unit

Installation Guide

Mechanical key

Mortise

Mounting paper

Outdoor unit

Screws

Spindles

Strike board

Strike box

PL10R

0.23 Mb Data Sheet
2015-09-29

PL10R Installation Guide

1.61 Mb Installation Guide
2015-09-29

PL10R User Manual

0.56 Mb User Manual
2015-09-29
