- Revolutionary SilkID Fingerprint Sensor
- Built In Camera:Event Snapshot and User Photo

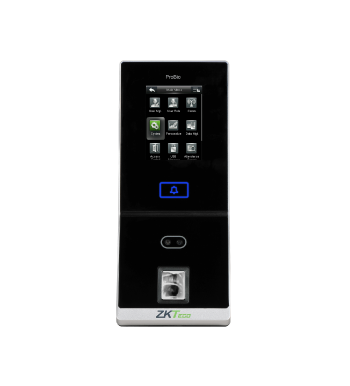

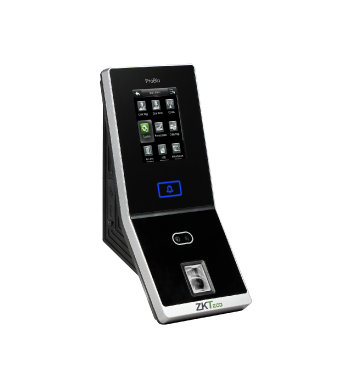

ProBio is the first access control terminal to apply the most advanced Silk ID and face technology together. Silk ID not only has outstandingly high identification rate towards dry, wet, and rough fingers but also provides the utmost security with alive finger detection. It can operate under strong light and activates automatically when finger approaches to save power.
Using ZKTeco’s latest ZKFACE version 7.0 high-speed face recognition algorithm, it has extremely high verification speed and low error rate, in addition to being able to effectively prevent duplicated registration.
In addition, the new ZMM 220 hardware platform has a clock rate of 1.2 GHZ, greatly enhancing the speed of fingerprint and face verification. Such speedy hardware platform and fingerprint and face algorithm greatly enhance the speed of fingerprint and face verification.
• Revolutionary SilkID Fingerprint Sensor
• Multiple Verification Modes: Face / Fingerprint / Card / Password
• Outstanding Performance With Dry, Wet and Rough Fingers
• Simple Management & Scalability
• Built In Camera: Event Snapshot and User Photo
|
Fingerprint Capacity |
4,000 |
|
Face Capacity |
2,000 (1:N) / 4,000 (1:1) |
|
Card Capacity |
10,000 |
|
Transactions Capacity |
100,000 |
|
User Photos |
4,000 |
|
Event Photos |
2,000 |
|
Communication |
TCP/IP, RS485 (For Slave Reader), USB Host, Wiegand Input / Output, Security Relay Box |
|
Hardware |
1.2GHz Dual Core CPU, Memory 128MB RAM / 256MB Flash, SilkID Fingerprint Sensor, 2,8 Inches TFT-LCD Touch Screen, 125KHz EM Reader / Mifare (Optional), Hi-Fi Voice & Indicator, Tamper Switch Alarm, Dual IR Camera |
|
Standard Functions |
Access Levels / Groups / Holidays , DST / Bell Schedule, Duress Mode, Anti-Passback, Record Query, Custom Wallpaper & Screen Saver |
|
Special Functions |
Multiple Biometric Verification Modes, Alive Finger Detection, Event Snapshot, User Photo |
|

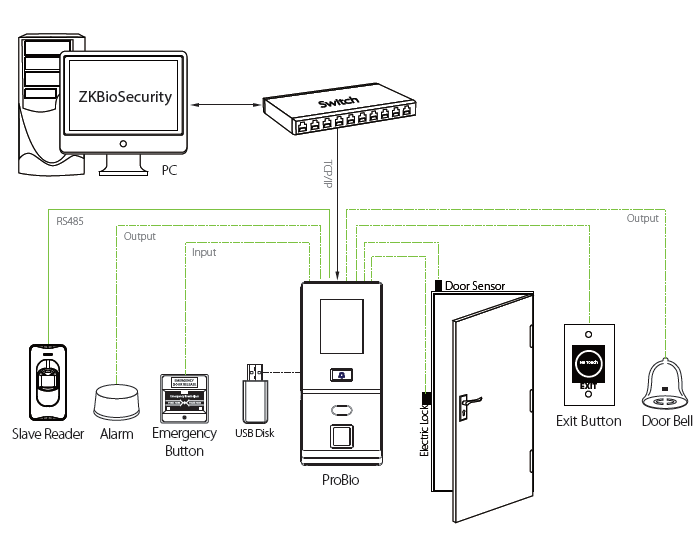

Access Control Interface |
Lock Relay Output, Alarm Output / Auxiliary Input, Exit Button / Door Sensor, Doorbell Output |
|
Compatibility |
Wiegand Slave Reader, RS485 FP Slave Reader , ZKBioSecurity Software |
|
Working Temperature |
-10 °C ~ 50 °C |
|
Dimensions |
190.8 × 85 × 103 mm |
|
Algorithm |
ZKFace v7.0 & ZKFinger v10.0 Algorithms |
|
Power |
Operating Voltage 12V DC, Current Draw < 500 mA |
';
Diode (FR107)
Installation Guide
Measuring Tape
Power Adapter
Screw Driver
Screws and holders
