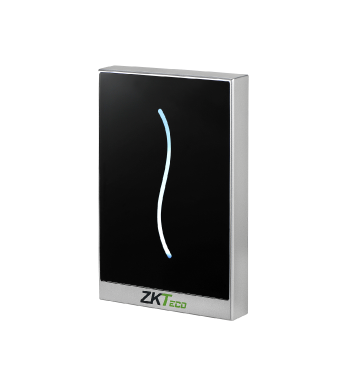

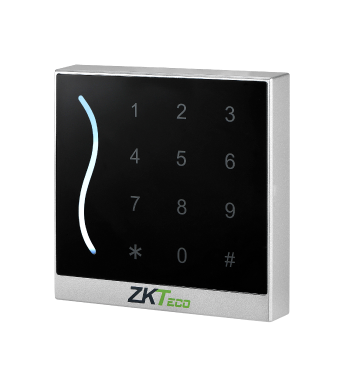

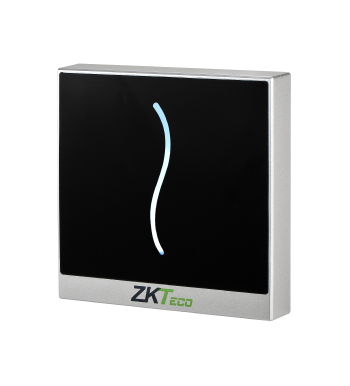

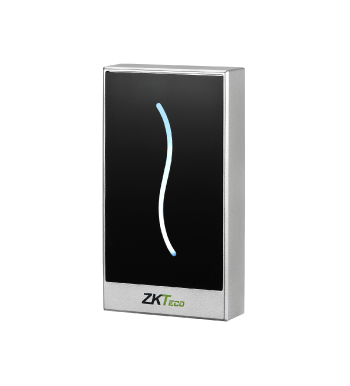

ProID Series
  • High stability and energy efficiency.
  • LED light and touch keypad.

The ProID family of card readers is designed to offer card technologies options to customers such as 125KHz EM, 13.56MHz MIFARE, DESFire, FeliCa or Legic.


With a robust all-weather protection and a beautiful modern design, the ProID family is the best choice for indoor or outdoor applications.

  • High stability and energy efficiency.
  • LED light and touch keypad.
  • On-site adjustable Wiegand output (26 or 34 bits).
  • Waterproof design suitable for indoor or outdoor applications.
  • Black or white color available.

Read Range

• ProID10 EM/IC 3.5cm • ProID20/30/40 EM/IC 5cm

Reading Time

• ≤300ms

Input Port

• External LED Control  • External Buzzer Control

Output Port

• Wiegand 26bit or 34bit adjustable

Power/Current

• Operating Voltage 7-13V DC / Current Draw < 80mA

LED

• Pulsing White Standby light • Pulsing

Operating Temperature

• -10°C to +65°C

Operating Humidity

• 10% to 90% relative humidity  • non-condensing

Audio

• Beep

Index Protection

• IP65

Dimensions • ProID10: 80.5 × 44 × 15mm.
• ProID20/30: 90 × 90 × 16mm.
• ProID40: 116 × 75 × 15mm.

ProID Series

0.65 Mb Data Sheet
2016-03-06
