ProRF-T
  • Touch Keypad
  • Built In Camera:Event Snapshot and User Photo(Optional)

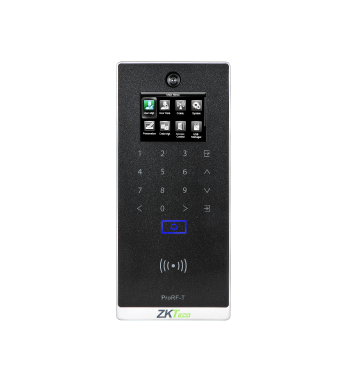

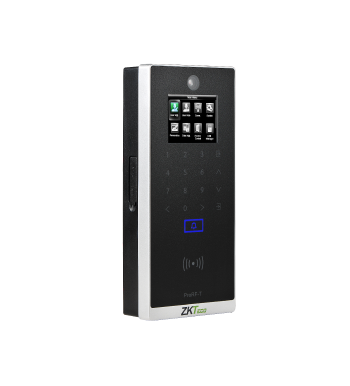

ProRF-T is an RFID access control terminal incorporated with 2.4 inches TFT LCD Screen .The color display and new firmware structure offer a user-friendly menu for easy management, as well as photo taking capability that enables attendance photos and photo ID (optional). The new ZMM 220 hardware platform has a clock rate of 1.2 GHZ, greatly enhancing the speed verification. Touch keypad enables easy and convenient operations, such as managing users, accessing control parameter settings, or reading reports.

• Modern Design & Interactive UI
• Simple Management & Scalability
• Multiple Verification Modes: Card / Password
• Touch Keypad
• Built In Camera:Event Snapshot and User Photo

Card Capacity

50,000

Transactions Capacity

100,000

User Photos

3,000

Event Photos

7,000

Communication

TCP / IP, RS485 (For Slave Reader), USB Host, Wiegand Input / Output, Security Relay Box

Hardware

1.2GHz Dual Core CPU, Memory 128MB RAM / 256MB Flash, 2,4 Inches TFT-LCD Touch Screen, 125KHz EM Reader / Mifare (Optional), Hi-Fi Voice & Indicator, Tamper Switch Alarm, Touch Keypad, 120° Wide Angle Camera

Standard Functions

Access Levels / Groups / Holidays , DST / Bell Schedule, Duress Mode(Password), Anti-Passback, Record Query, Custom Wallpaper & Screen Saver

Special Functions

Multiple Verification Modes, Event Snapshot, User Photo(Optional)

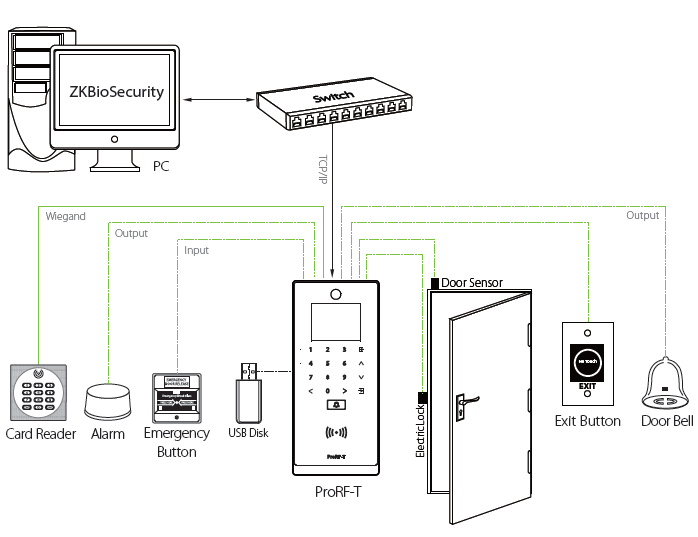

Access Control Interface

Lock Relay Output, Alarm Output / Auxiliary Input, Exit Button / Door Sensor, Doorbell Output

Compatibility

Wiegand Slave Reader, ZKBioSecurity Software, RS485 Card Slave Reader (Optional)

Working Temperature

-10 °C ~ 50 °C

Dimensions

195.5 × 87 × 35 mm.

Power

Operating Voltage 12V DC, Current Draw < 500 mA



';

Installation Guide

Diode (FR107)

Measuring Tape

Power Adapter

Screw Driver

Screws and holders

Cables

ProRF-T Installation Guide

2.64 Mb Installation Guide
2016-03-01

ProRF-T Quick Start Guide

2.35 Mb Quick Start Guide
2016-03-01

ProRF-T User Manual

6.98 Mb User Manual
2016-03-01

ProRF-T

0.88 Mb Data Sheet
2017-04-16
