Technical Specifications

Model

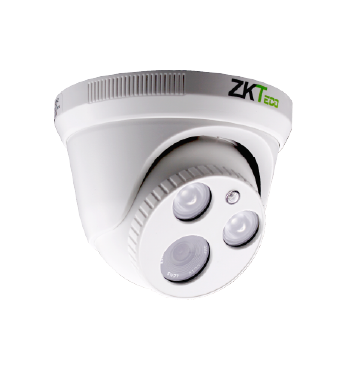

PT-DA294K2

Video Compression

H.265/H.264

Sensor

OV4689 CMOS

Light-sensing surface area

1/3-inch

Resolution

4.0MP

Definition

2592(H)*1520(V)

Min. illumination

Color: 0.01Lux@(F1.2,AGC ON),0 LUX with IR

B&W: 0.001Lux@(F1.2,AGC ON),0 LUX with IR

Lens

4mm fixed lens(6/8/12 optional)

Protocol

TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP

HTTPS, SIP, 802.1x, IPv6 optional

Ethernet

RJ45 10M/100M adaptive ethernet interface

Shutter

1/50(1/60)s to 1/10,000s

IR Distance

2*Array LED: 20m

Power Supply

DC12V±10%

Working Environment

-10 °C- 60 °C, Less than 90%RH

Dimension(Color Box)

130mm*130mm*102mm

Gross/Net Weight

0.28kg/0.2kg
