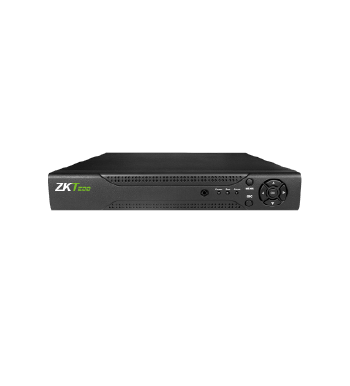

PT-NR5108
  • 8-ch HD video input
  • 1 SATA max to 6 TB
  • H.265/H.264 compression
  • Support TV, VGA, HDMI output
  • 8-ch HD video input
  • 1 SATA max to 6 TB
  • H.265/H.264 compression
  • Support TV, VGA, HDMI output
  • Support controlling PTZ via mouse
  • Support mobile view (IOS, Android)
  • Support Multi-language
  • Support IE web server, client software
  • Support DHCP, FTP, DNS, DDNS, NTP, UPNP, IP searching etc
Technical Specifications
Video/Audio
Video PAL/NTSC
Standard Audio: G.711A
Video Compression H.265/H.264(High Prole)
Video Display 1/4/8/16/24/32 split display
Video Input 5M: 4-ch 3M: 4-ch 1080P: 8-ch
Video Output 1ch HDMI
Audio I/O 0/0
Backup Network backup, USB hard disk
Local Playback 5M:1-ch 3M:2-ch 1080P:4-ch real-time playback
Playback Resolution 5M/3M/1080P
Hard Disk Driver
Storage 1 SATAs
External Interface
Onvif Unsupport
Network Interface 1 RJ45 10M/100M/1000M adaptive ethernet interface
USB Interface 2 USB ports
Output Interface 1 HDMI
General
Working Conditions 0℃-＋55℃; 10%－90% RH
Power Supply 12V/2A
Dimension(color box) 255mm*236mm*44mm
Net/Gross Weight 1.2kg

PT-NR5108

1.54 Mb Data Sheet
2017-03-23
