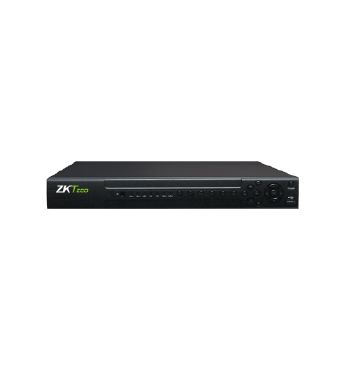

PT-NVR5216
- 16-ch HD video input
- 2 SATAs max to 12 TB
- H.265/H.264 compression
- Support HDMI 4K output
- 16-ch HD video input
- 2 SATAs max to 12 TB
- H.265/H.264 compression
- Support HDMI 4K output
- Support mobile view (IOS, Android)
- Support multiple web server(IE, Chrome, Firefox, Safari);
- Support Multi-language
- Support DHCP, FTP, DNS, DDNS, NTP, UPNP, IP searching Email, 3G, WIFI, Alarm center etc.
| Technical Specifications | ||
| Video/Audio | ||
| Video | PAL/NTSC | |
| Standard | Audio: G.711A | |
| Video Compression | H.265/H.264 | |
| Monitor Quality | MAX 4K | |
| Video Input | 5M: 8-ch 4M: 16-ch 3M: 16-ch | |
| Video Output | 1ch HDMI 1ch VGA | |
| Backup/Playback | ||
| Backup | Network backup, USB hard disk | |
| Local Playback | 5M:4-ch 4M:4-ch 3M:8-ch | |
| Record M | Manual>Alarm>Dynamic detection>Timing | |
| Hard Disk Driver | ||
| Storage | 2 SATAs (Max 12 TB) | |
| External Interface | ||
| Audio I/O | 1/1 | |
| Onvif | support | |
| Network Interface | 1 RJ45 10M/100M/1000M adaptive ethernet interface | |
| USB Interface | 2 USB2.0 1 USB3.0 ports | |
| PTZ Control | Control PTZ device by network | |
| General | ||
| Working Conditions | 0℃-＋55℃; 10%－90% RH | |
| Power Supply | 12V/4A | |
| Dimension(color box) | 350mm*296.4mm*44mm | |
| Weight | Around 1.8KG | |
PT-NVR5216
1.3 Mb
Data Sheet
2017-03-23
